Component Overview

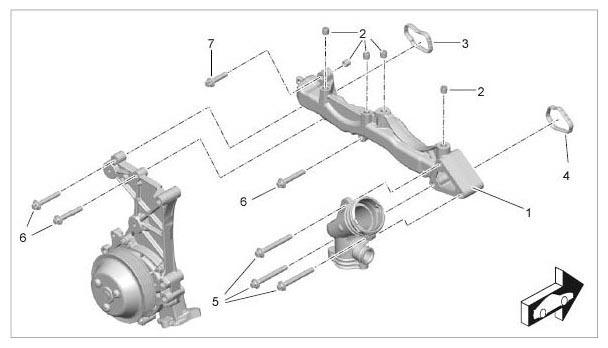

Fig 1: Overview Of Distributor Housing (Unit Carrier)
G09991012Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Coolant distributor housing (unit carrier)
  2. Dowel sleeves
  3. Molded seal
  4. Molded seal
  5. External Torx screw, M8 x 70
  6. External Torx screw, M8 x 50
  7. External Torx screw, M8 x 35
