Removing Coolant Regulator

1. 1.1. Unscrew three screws -2-  and remove heat protection.

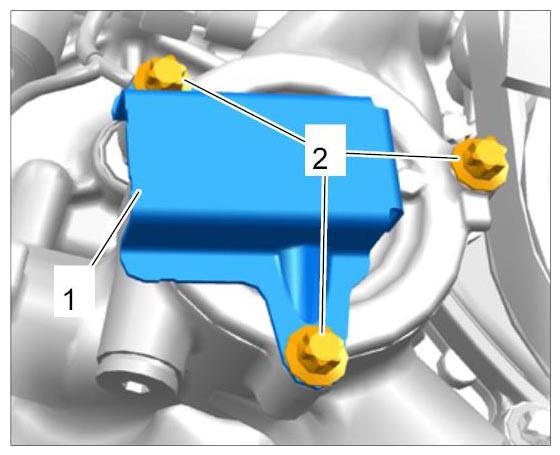

   Fig 1: Identifying Heat Protection On Coolant Regulator And Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Caustic fluids

   • Danger of chemical burns

   → Avoid contact with caustic fluid.

   → Wear personal protective gear.

   → Ensure that there is good ventilation.

   → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Collect emerging coolant in a container.

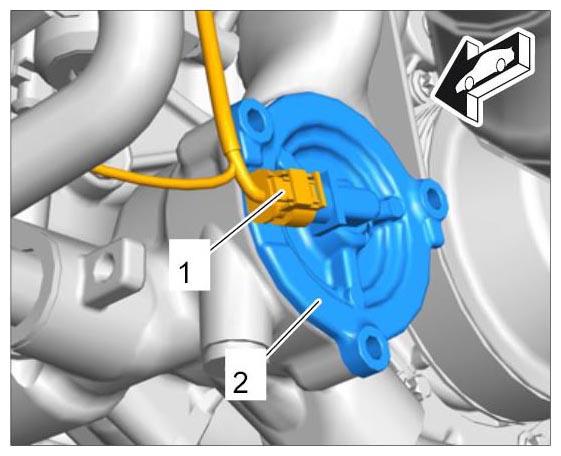

Fig 2: Identifying Cable Plug On Coolant Regulator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. If the seal is damaged, replace the coolant regulator.

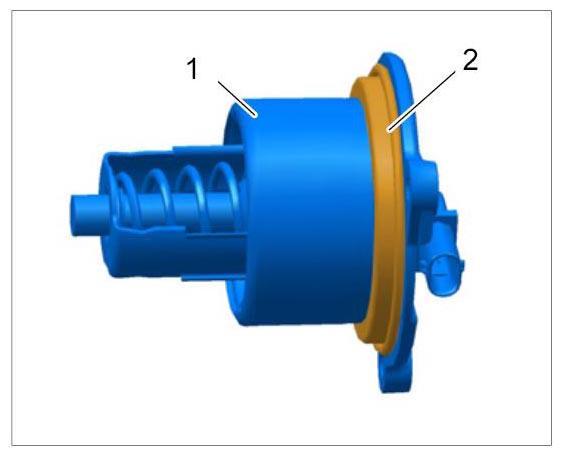

   Fig 3: Identifying Coolant Regulator Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
