Installing Coolant Pump

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93)  .

1. Coat the seal with the specified lubricant.
2. Fit coolant pump and secure with all screws and holders.
   1. 2.1. Tighten M6 screws.

      → Tightening torque: 13 Nm (9.5 ftlb.)

   2. 2.2. Tighten M8 screw.

      → Tightening torque: 33 Nm (24 ftlb.)

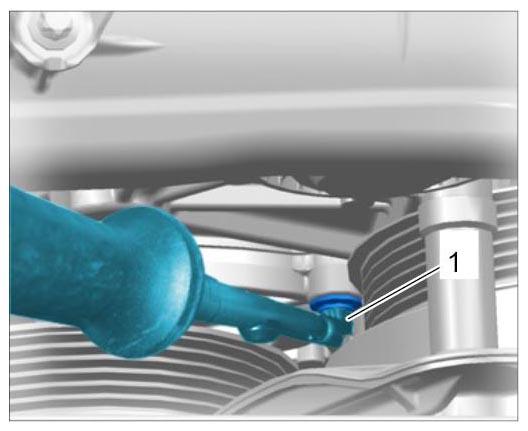

      Fig 1: Tightening Coolant Pump Screw (Top)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure coolant pump holder to the coolant regulator housing with an M6 screw.

   → Tightening torque: 13 Nm (9.5 ftlb.)

   Information

   • Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
4. Install coolant pipe -1-  at the bottom with new O-rings.

   Not for GT3 vehicles!

   1. 4.1. Connect coolant hose -4-  and close the spring band clamp -3-  .
   2. 4.2. Fit and tighten M6 fastening screw -2-  .

      → Tightening torque: 13 Nm (9.5 ftlb.)

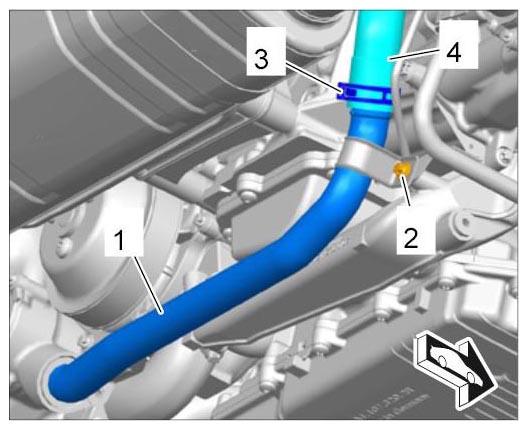

      Fig 2: Identifying Lower Coolant Pipe Screw And Clamp

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
