Subsequent Work

1. 1.1. Open the bleeder valve on the coolant reservoir and allow the engine to warm up (coolant temperature: approx. 80 - 90° Celsius).
2. 1.2. Let the engine cool down sufficiently and check the coolant level in the reservoir (recommended level: almost at maximum).
3. 1.3. Correct the coolant level if necessary.
4. 1.4. Close the bleeder valve on the coolant reservoir again.

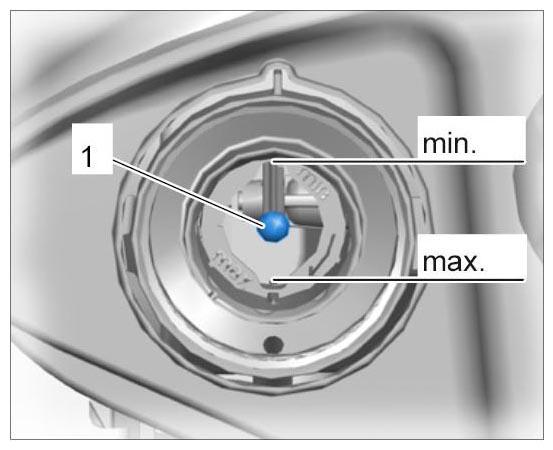

   Fig 1: Checking Coolant Level Indicator In Reservoir

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Fit and tighten fastening screws.

   Tightening torque 20 Nm (15 ftlb.)

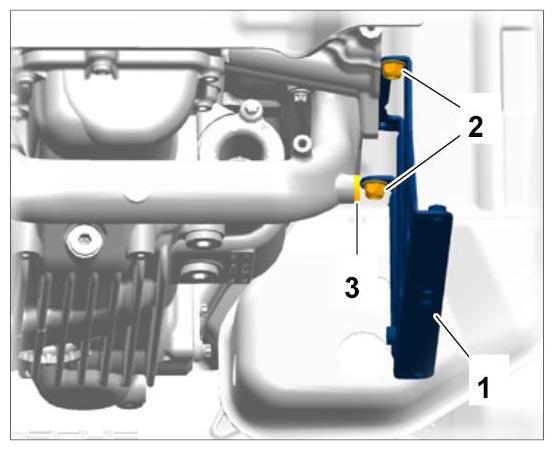

   Fig 2: Identifying Engine Guard Holder (Right)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ INSTALLING ENGINE GUARD .

→ INSTALLING COVER FOR REAR UNDERBODY .

→ INSTALLING SUPPORT PLATE .
