Draining Coolant - Engine

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Open cap -1-  on the reservoir and remove it.

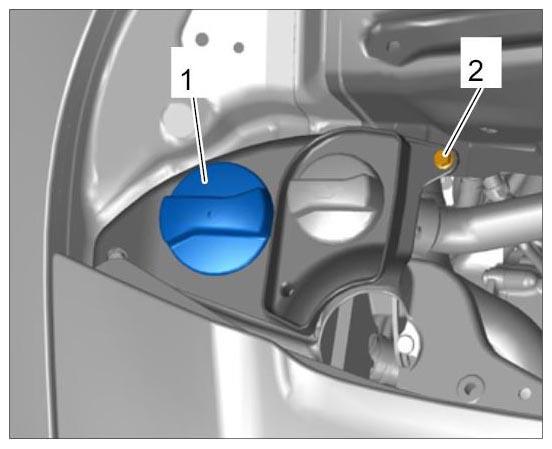

   Fig 1: Identifying Coolant Reservoir Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove engine guard.

   → 108019 REMOVING AND INSTALLING ENGINE GUARD .

3. Remove engine guard holder at the right.

   For easier access to the drain plug -3- on the coolant pipe, remove the engine guard holder -1- at the right.

   1. 3.1. Unscrew M8 fastening screws -2-  .

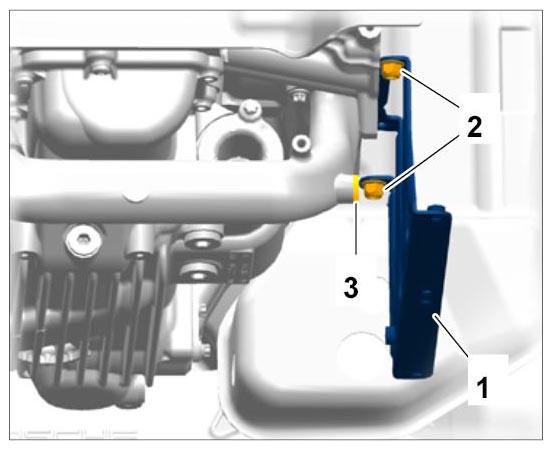

      Fig 2: Identifying Engine Guard Holder (Right)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      WARNING: Caustic fluids

      • Danger of chemical burns

      → Avoid contact with caustic fluid.

      → Wear personal protective gear.

      → Ensure that there is good ventilation.

      → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

4. To collect the coolant, secure a pan on a transmission jack and place it under the drain positions.
5. Unscrew coolant drain plugs.
   1. 5.1. Unscrew drain plug -1-  on the coolant regulator housing.

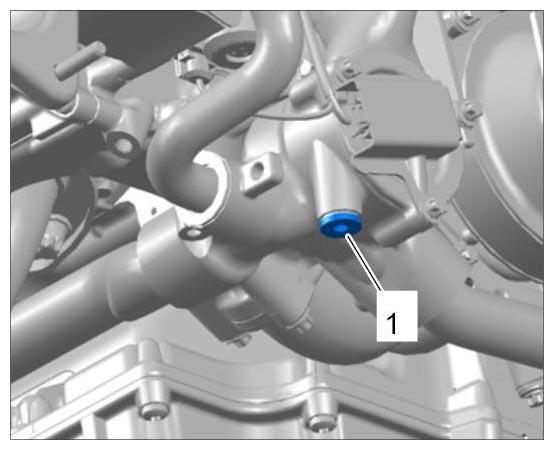

      Fig 3: Identifying Drain Plug On Coolant Regulator Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 5.2. Unscrew (plastic) drain plug -1-  on the coolant guide tube.

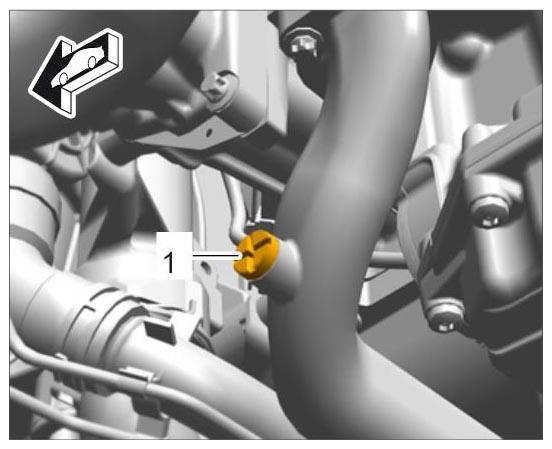

      Fig 4: Identifying Drain Plug On Coolant Guide Tube

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. After draining the coolant, screw in and tighten drain plugs with new sealing rings.
   1. 6.1. Drain plug on coolant regulator housing: Tightening torque 25 Nm (19 ftlb.)
   2. 6.2. (Plastic) drain plug on coolant guide: Tightening torque 3 Nm (2 ftlb.)
