Draining Coolant - Underbody Coolant Pipes

→ Let the fluid cool down.

→ Wear personal protective gear.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Place collection pan under the drain position.
2. Remove spring clamps on plug-in couplings -1-  .
3. Pull off coolant supply and return hose -2-  and collect emerging coolant.
   1. 3.1. Re-fit spring clamps.

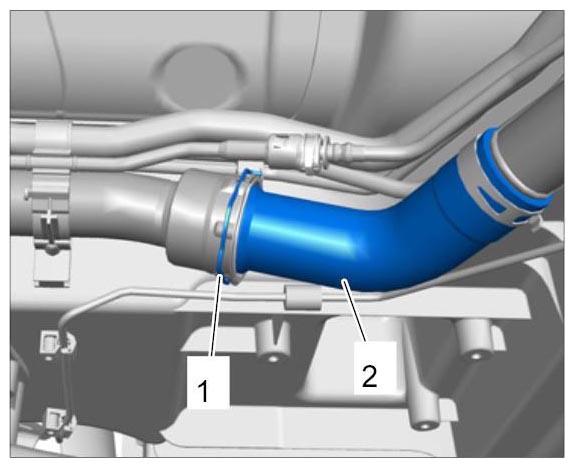

      Fig 1: Identifying Coolant Hose On Rear Underbody

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Check O-rings on the plug-in couplings and replace them if necessary.
      • Clean plug connection and coolant hoses before assembly.
      • Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
      • Remove stoppers before fitting the coolant lines and hoses.
4. Check O-rings and replace them if necessary.
5. Re-fit coolant hoses after draining coolant. Check the safety clips.
   1. 5.1. Pull to check that hoses are secure.
