Removing Air Guide For Side Radiator

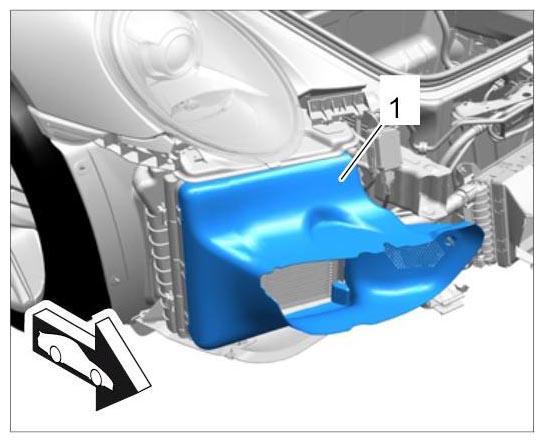

Fig 1: Removing Side Radiator Air Guide (Right Side)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Pull outside temperature sensor -2-  and cable out of the air guide.

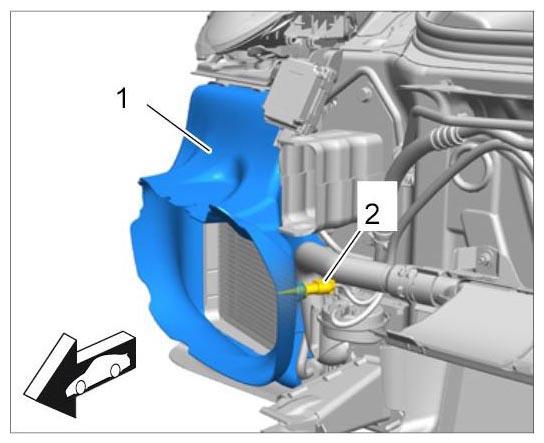

   Fig 2: Removing Right Air Guide With Outside Temperature Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Loosen 11 locking lugs -2-  on the retaining frame for the side air guide -1-  using a plastic wedge and remove the air guide.

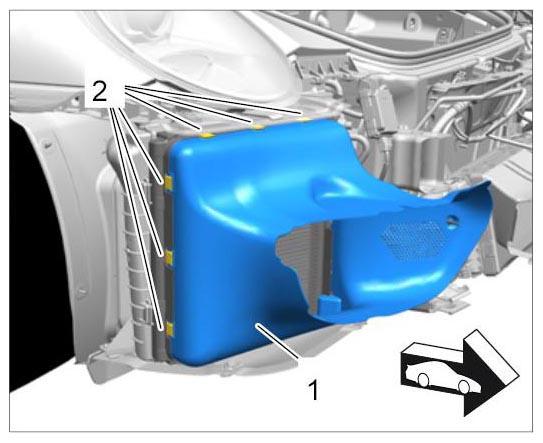

   Fig 3: Removing Locking Lugs On Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove air guide behind the radiators:

→ 190819 REMOVING AND INSTALLING ELECTRIC FAN .
