Installing Air Guide For Side Radiator

Fit rear air guide on the cooling fan.
→ 190819 REMOVING AND INSTALLING ELECTRIC FAN .
Fit the left air guide.
1. 2.1. Position the air guide in the retaining frame and clip it in at the locking lugs.
2. 2.2. Check that the air guide is seated securely.
Fit the right air guide -1- in the same way as on the left side.
1. 3.1. Also plug the outside temperature sensor -2- into the air guide from behind.

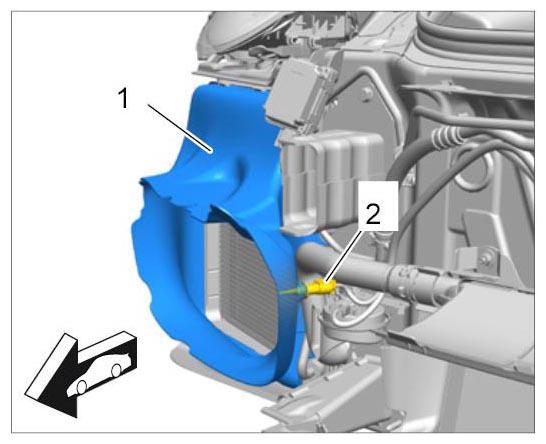

  Fig 1: Removing Right Air Guide With Outside Temperature Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
