Removing Engine Coolant Level Sensor

  1. Remove engine coolant level sensor -1-  .
    1. 1.1. Pull off cable plug -2-  .
    2. 1.2. Turn the sensor 90° clockwise -arrow-  and pull it out of the reservoir.

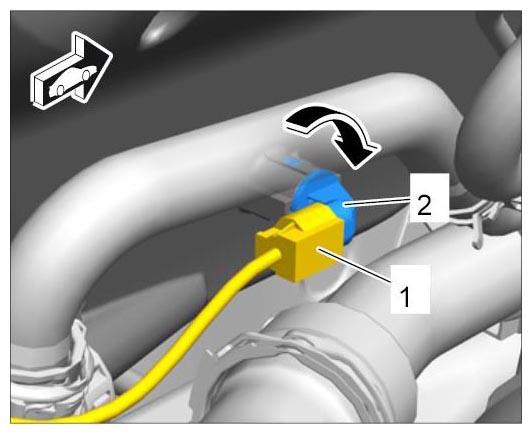

      Fig 1: Removing Engine Coolant Level Sensor
      G09990930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
