Preliminary Work

  1. Remove engine-compartment blower. → 198119 REMOVING AND INSTALLING ENGINE-COMPARTMENT BLOWER
  2. Remove service tray at the left.
    1. 2.1. Screw off cap for filling coolant -1-  and unscrew M6 screw -2-  .
    2. 2.2. Open spring band clamp on oil filler hose and pull it off. Then remove service tray.

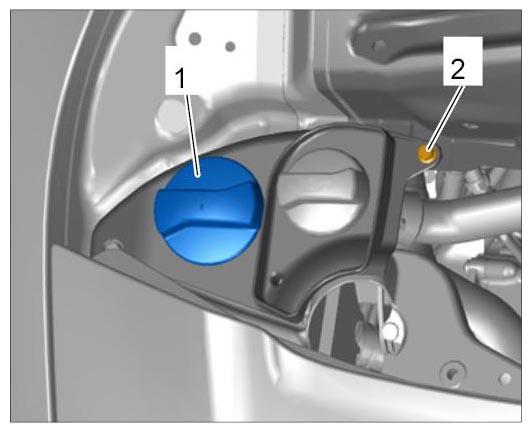

      Fig 1: Identifying Cap On Coolant Reservoir And Cover Screw
      G09990929Courtesy of PORSCHE CARS NORTH AMERICA, INC.
