Installing Engine Coolant Level Sensor

  1. Fit the engine coolant level sensor -2-  , turn it 90° anti-clockwise as far as it will go -arrow-  and check that it is seated securely.
    1. 1.1. Connect cable plug -1-  .

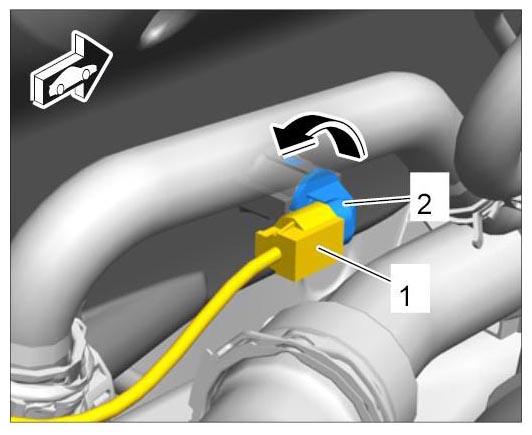

      Fig 1: Installing Engine Coolant Level Sensor
      G09990931Courtesy of PORSCHE CARS NORTH AMERICA, INC.
