Removing Electric Fan

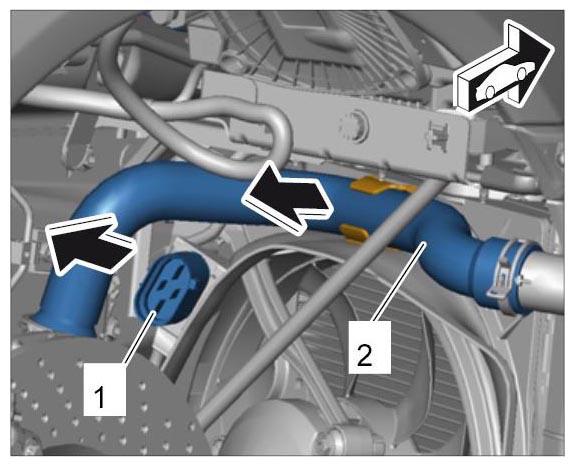

Unplug cable plug and pull counter plug -1- and coolant hose -2- out of the fan frame.

Fig 1: Removing Cable Plug And Coolant Hose On Fan Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the radiator.

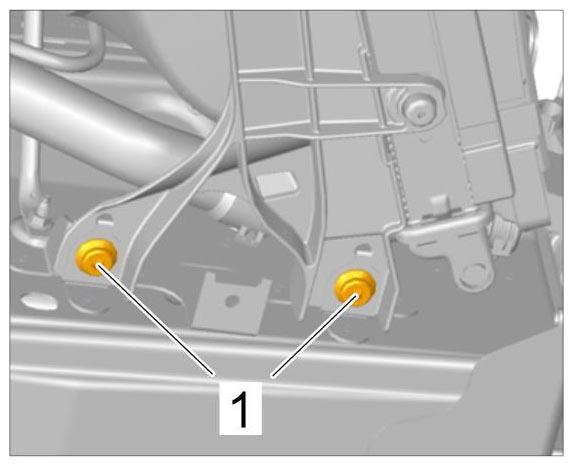

1. 2.1. Unscrew two hexagon-head bolts (M8 x 25, a/f 13) -1- at the bottom of the radiator frame.

  Fig 2: Identifying Lower Radiator Support And Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

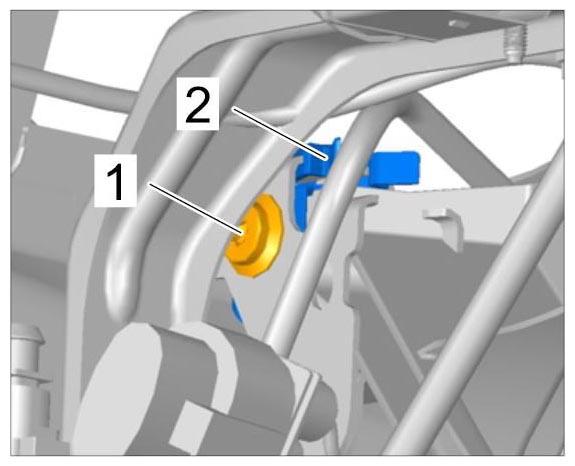

2. 2.2. Unscrew one hexagon-head bolt (M8 x 50) with washer -1- at the top of the radiator frame.

  Fig 3: Identifying Upper Radiator Support And Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Press locking tabs on the fixing clip -2- together and disengage radiator frame.

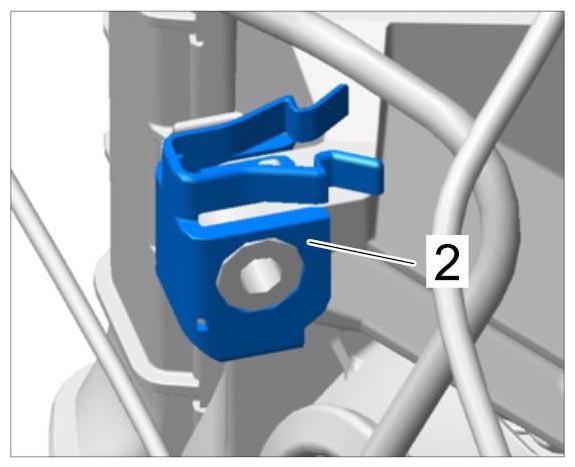

  Fig 4: Identifying Radiator Fixing Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Only for GT3 and Turbo vehicles
Remove electric fan with frame -1- .
Information
- Get another person to hold the electric fan.

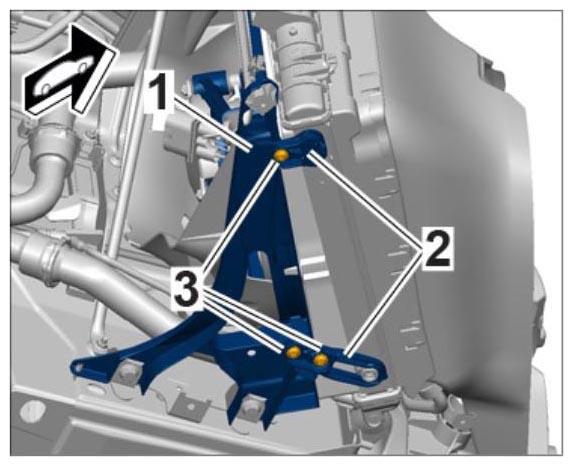

1. 3.1. Unscrew three internal Torx screws (M6 x 25) -3- at the bottom of the electric fan holder -2- .
  Get another person to hold the electric fan from underneath.
2. 3.2. Unscrew three internal Torx screws (M6 x 25) -3- at the top of the electric fan holder -2- .
  Get another person to hold the electric fan from underneath.
3. 3.3. Remove electric fan with frame -1- .

  Fig 5: Identifying Fan Frame Holder (Bottom)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Get another person to hold the electric fan.

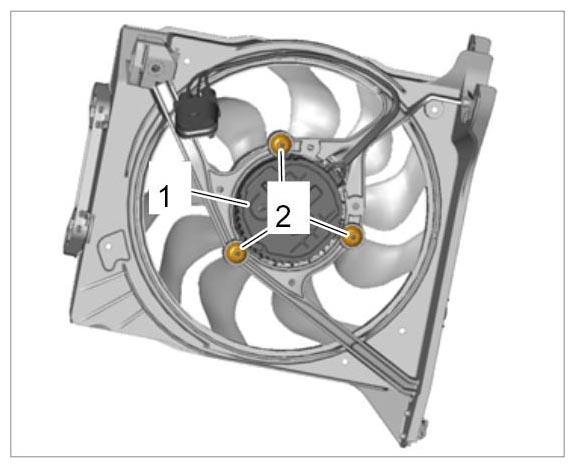

Unscrew two internal Torx screws (M6 x 25) at the top of the electric fan holder.
Get another person to hold the electric fan from underneath.
1. 4.1. Remove electric fan with frame.

  Fig 6: Identifying Fan Frame Holder (Top)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

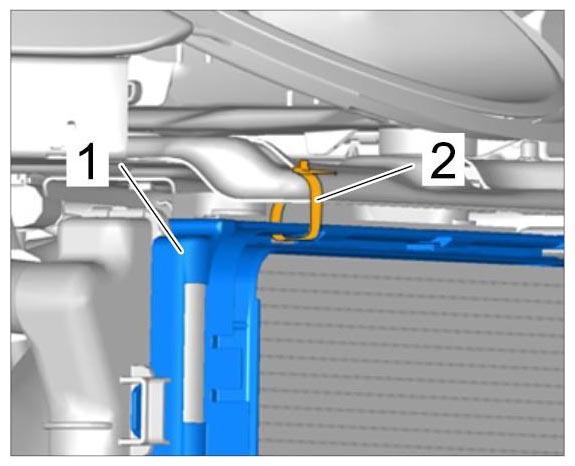

Suspend the radiator with air-conditioning condenser -1- on the body with a tie-wrap -2- .

Fig 7: Identifying Air-Conditioning Condenser With Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear air guide.
1. 6.1. Pull cable plug out of the guide and unclip the cable on the air guide -arrows- .

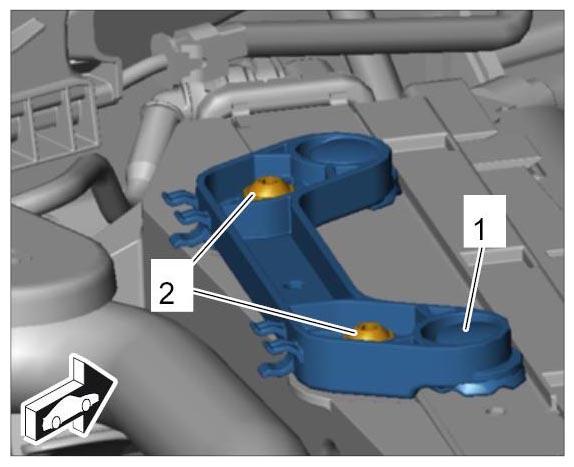

2. 6.2. Use a flat-nosed pliers to pull off five clips -1- and remove the air guide.

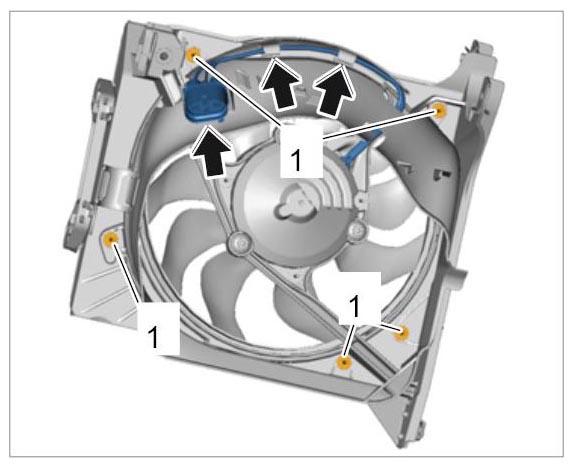

  Fig 8: Locating Rear Air Guide Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove electric fan.
1. 7.1. Remove the cover -1- by pulling off four clips -2- using a flat-nosed pliers.
  Not for GT3 and Turbo vehicles

  Fig 9: Identifying Cover On Electric Fan
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

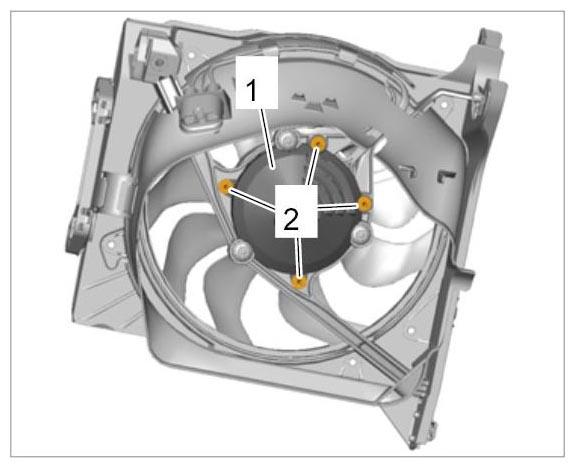

2. 7.2. Unscrew three M6 hexagon nuts -2- and remove the electric fan -1- from the fan frame.

  Fig 10: Identifying Electric Fan Nuts
