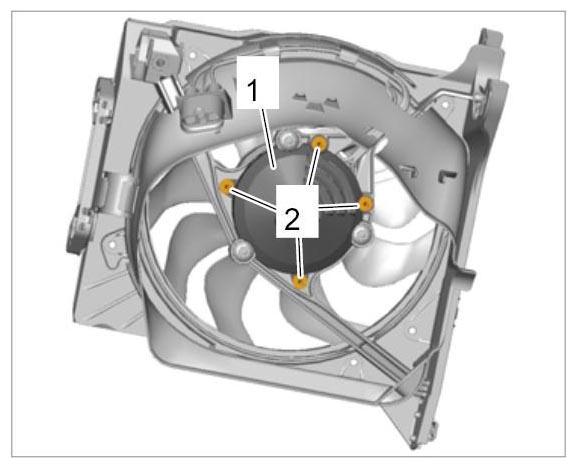

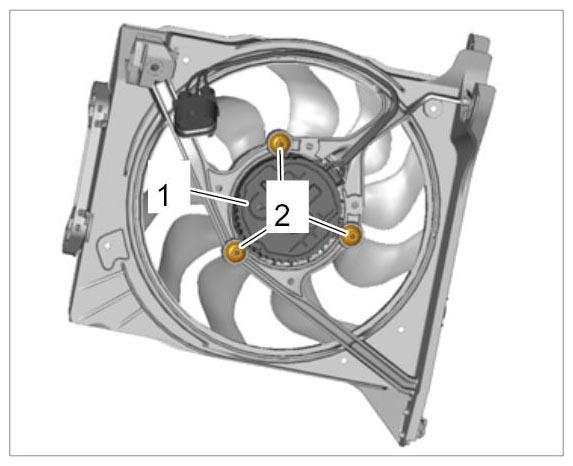

Installing Electric Fan

→ Tightening torque: 10 Nm (7.5 ftlb.)

Fig 1: Identifying Electric Fan Nuts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Secure cover -1-  with four clips -2-  .

   Not for GT3 and Turbo vehicles

   Fig 2: Identifying Cover On Electric Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

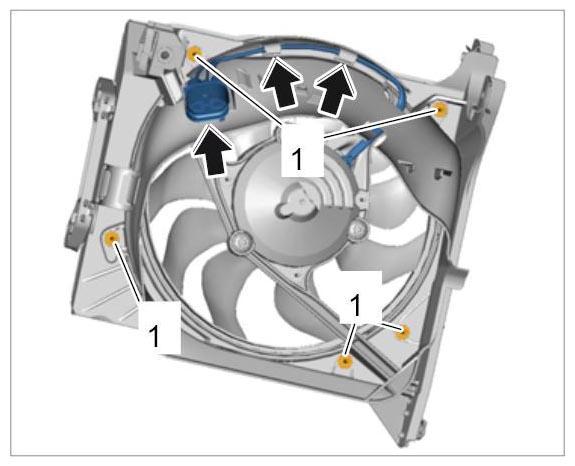

1. 3.1. Position air guide according to hole pattern and secure with five clips -1-  .
2. 3.2. Clip in cable and cable plug on the air guide -arrows-  .

   Only for GT3 and Turbo vehicles

Fig 3: Locating Rear Air Guide Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Get another person to hold the electric fan.

1. 4.1. Guide in electric fan with frame and secure it to the radiator at the bottom using the rubber sleeves.

   Get another person to hold the electric fan.

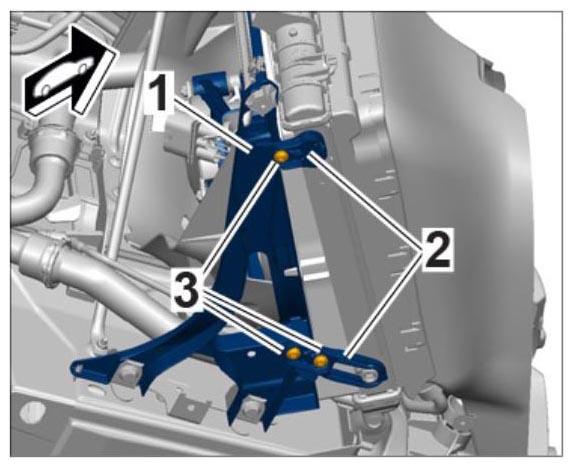

2. 4.2. Tighten three internal Torx screws (M6 x 25) -3-  at the top of the electric fan holder -2-  .

   → Tightening torque: 10 Nm (7.5 ftlb.)

3. 4.3. Tighten three internal Torx screws (M6 x 25) at the bottom of the electric fan holder.

   → Tightening torque: 10 Nm (7.5 ftlb.)

   Fig 4: Identifying Fan Frame Holder (Bottom)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Get another person to hold the electric fan.

1. 5.1. Guide in electric fan with frame and secure it to the radiator at the bottom using the rubber sleeves.

   Get another person to hold the electric fan.

2. 5.2. Insert two rubber sleeves on the holder.

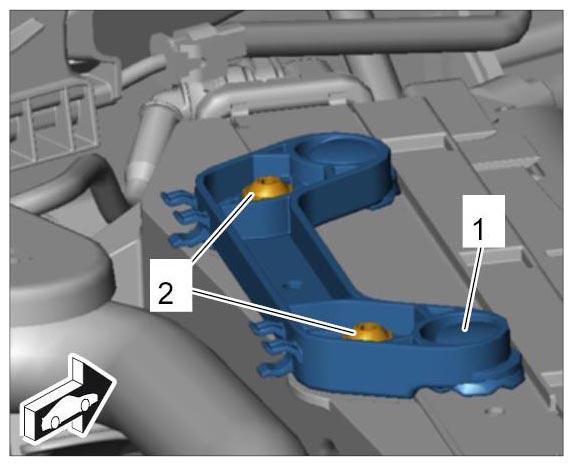

3. 5.3. Secure electric fan at the top with holder -1-  and two internal Torx screws (M6 x 25) -2-  .

   → Tightening torque: 10 Nm (7.5 ftlb.)

   Fig 5: Identifying Fan Frame Holder (Top)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

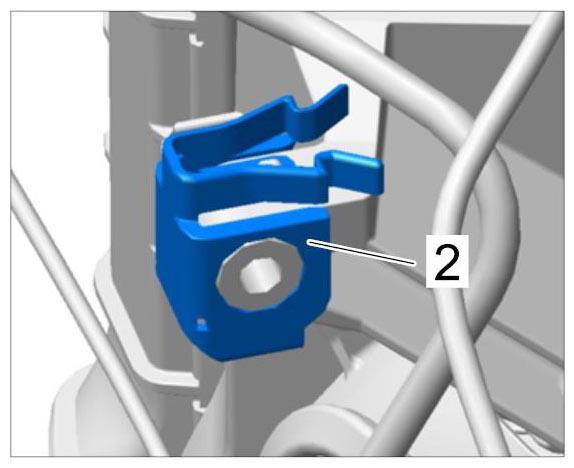

1. 6.1. Engage the radiator module on the body with a fixing clip -2-  .
   Fig 6: Identifying Radiator Fixing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Fit three hexagon-head bolts: two M8 x 25 at the bottom and one M8 x 50 with washer at the top.
3. 6.3. Tighten the screws.

   → Tightening torque: 23 Nm (17 ftlb.)
