Installing Generator

  1. Position the generator on the engine and secure the B+ line with the collar nut. Tightening torque 18 Nm (13 ftlb.)
  2. Fit the cap.
  3. Connect cable plug and engage the latch.
    1. 3.1. Fit cable clip on the housing.
  4. Position the generator -arrow-  and fit the right screw.
    1. 4.1. Tighten both screws. Tightening torque 15 Nm (11 ftlb.)

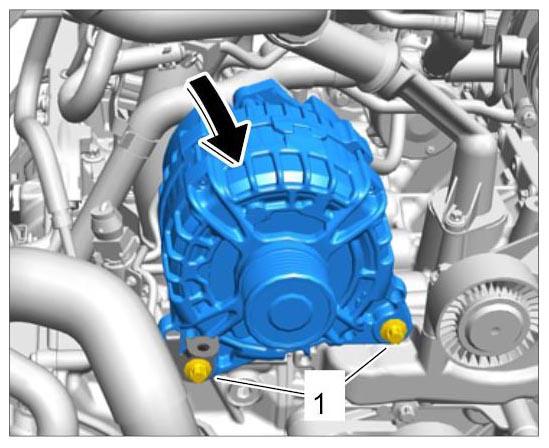

      Fig 1: Installing Generator
      G09992113Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove fabric tape.
