Technical Values: Notes

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws for instrument cluster		Tightening torque	3.2 Nm (2 ftlb.)
Fastening nut for horn		Tightening torque	10 Nm (7.5 ftlb.)
Fastening screws for stopwatch		Tightening torque	1.7 Nm (1.5 ftlb)
Fastening nut securing antenna amplifier to A-pillar		Tightening torque	6 Nm (4.5 ftlb.)
Threaded joint for display and control panel		Tightening torque	5.6 Nm (4 ftlb.)
"CD player" radio		Tightening torque	5.6 Nm (4 ftlb.)
Threaded connection for midrange loudspeaker in door subframe		Tightening torque	3 Nm (2 ftlb.)
Threaded connection for woofer in door sub-frame		Tightening torque	3 Nm (2 ftlb.)
Fastening screw securing tweeter to dashboard		Tightening torque	2.5 Nm (2 ftlb.)
Fastening screw securing center speaker to dashboard		Tightening torque	3.2 Nm (2 ftlb.)
Fastening screw securing subwoofer to dashboard bracket		Tightening torque	3.5 Nm (2.5 ftlb.)
Threaded connection for rear speaker		Tightening torque	2 Nm (1.5 ftlb.)
Fastening nut for loudspeaker amplifier		Tightening torque	6 Nm (4.5 ftlb.)
Fastening screw for SDARS antenna		Tightening torque	2 Nm (1.5 ftlb.)	+0.5 Nm (+0.5 ftlb.)
Fastening nut securing TV tuner to body		Tightening torque	2.5 Nm (2 ftlb.)
Fastening screw for windscreen-washer reservoir		Tightening torque	10 Nm (7.5 ftlb.)
Fastening nut on wiper arm		Tightening torque	25 Nm (19 ftlb.)
Wiper arm on passenger's side		Adjustment value	10 mm
Wiper arm on driver's side		Adjustment value	10 mm

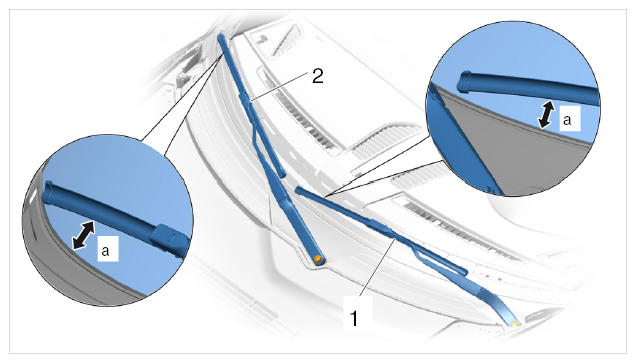

Adjusting wiper arm
Wiper arm for rear window washer to wiper motor		Tightening torque	19 Nm (14 ftlb.)
Fastening screw securing wiper linkage to body	Screw on spring strut dome	Tightening torque	23 Nm (17 ftlb.)
Fastening screw securing wiper linkage to body	Screws on bulkhead	Tightening torque	11 Nm (8 ftlb.)

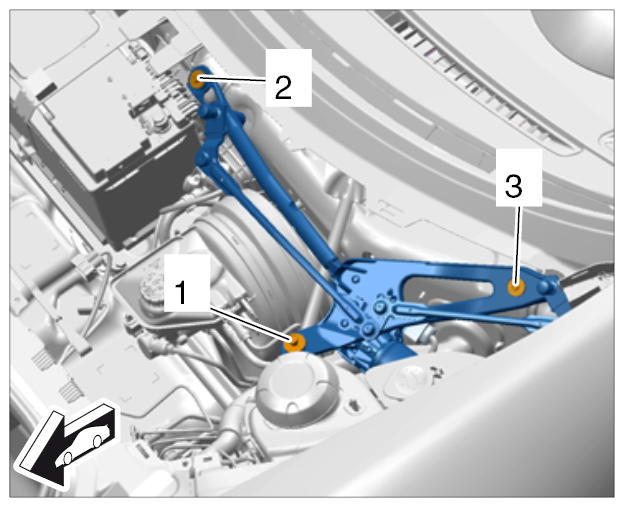

Threaded connection for wiper linkage
Fastening screw securing wiper motor for rear window washer to body		Tightening torque	3 Nm (2 ftlb.)
Fastening nuts securing wiper motor for rear window washer to body		Tightening torque	8 Nm (6 ftlb.)

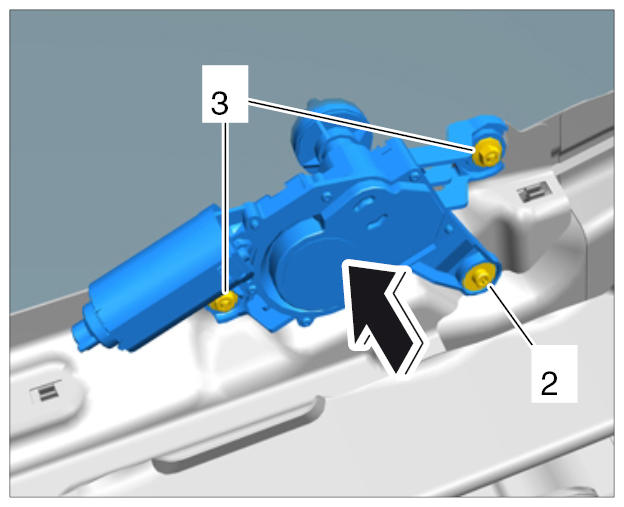

Installing wiper motor

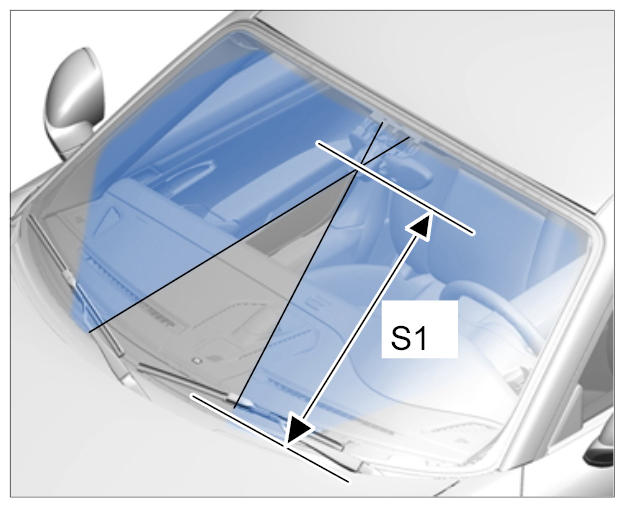

Spray range, front windscreen washer system (S1)	from front lid to spray jet intersection point	Adjustment value	480 mm	+/-10 mm
Spray pattern, front windscreen washer system
Fastening nuts securing headlight mounting to body		Tightening torque	8 Nm (6 ftlb.)

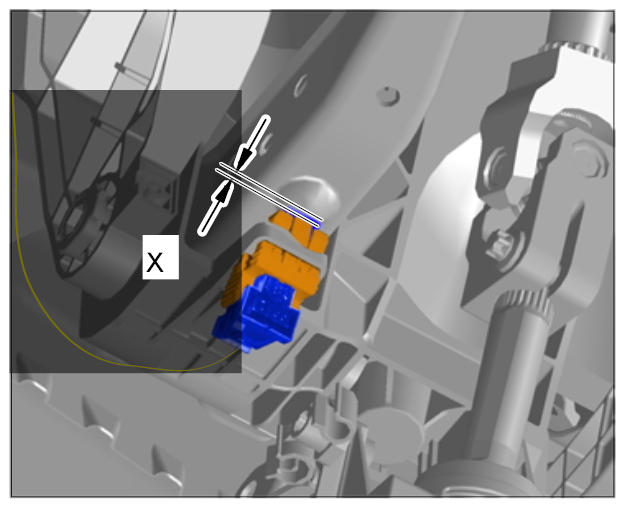

Gap dimension -x- brake light switch	Gap between sensor and counter plate	Adjustment value	1.5 mm	+/-0.5 mm
Adjusting brake light switch
Clamping screw for steering-column switch		Tightening torque	6 Nm (4.5 ftlb.)
Fastening screw for tail light		Tightening torque	5.8 Nm (4.5 ftlb.)	+10 %	-15 %
Fastening screw for tail light		Tightening torque	5.8 Nm (4.5 ftlb.)
Reflector cover fastening screw		Tightening torque	4 Nm	+0.5 Nm
Threaded joint for angle sensor on holder		Tightening torque	3.4 Nm (2.5 ftlb.)
Threaded joint for connecting link (angle sensor) on wishbone		Tightening torque	4.5 Nm (3.5 ftlb.)
Additional brake light to lower part of rear spoiler	M5 collar nut, self-locking - replace	Tightening torque	3 Nm (2 ftlb.)
Auxiliary headlight to front apron	Internal Torx screw, 6 x 18	Tightening torque	2.5 Nm (1.5 ftlb.)
Fastening screw for Kessy antenna in center console		Tightening torque	3 Nm (2 ftlb.)
Threaded joint for alarm siren holder on compressor holder		Tightening torque	2.8 Nm (2 ftlb.)
Threaded joint for alarm horn holder on spring strut dome		Tightening torque	9.7 Nm (7.5 ftlb.)	+10 %	-20 %
Ground points to longitudinal member in front luggage compartment		Tightening torque	8.5 Nm (6.5 ftlb.)

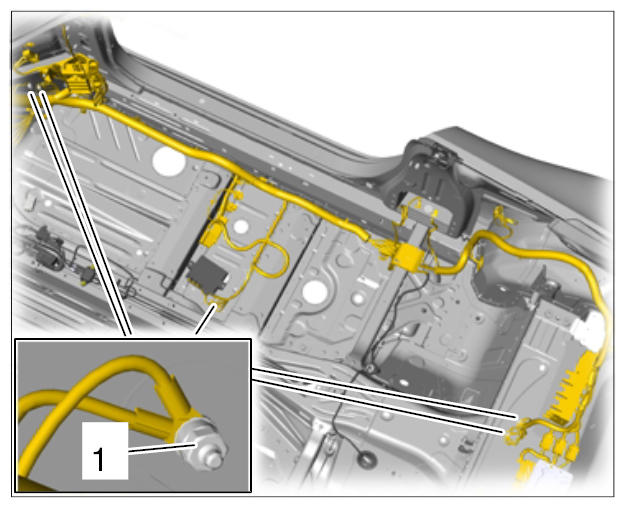

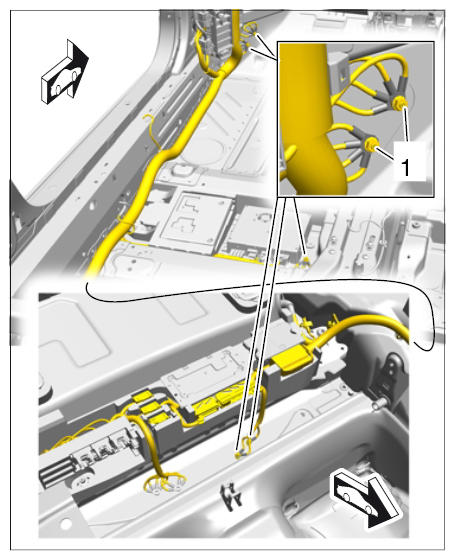

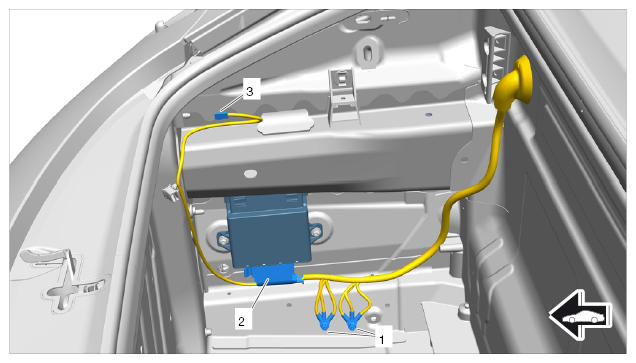

Main wire harness in luggage compartment, inner right

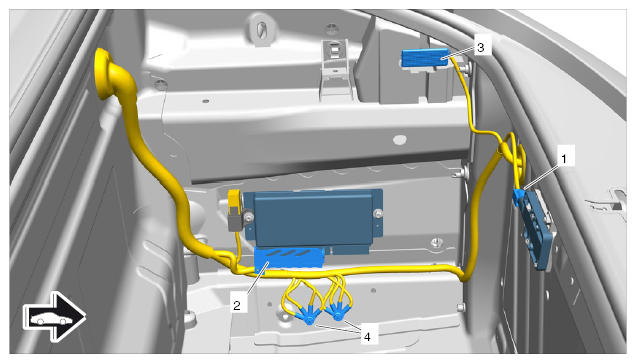

Main wire harness in luggage compartment, inner left
Fastening nuts on cable feed-through element in firewall		Tightening torque	5.5 Nm (4.5 ftlb.)

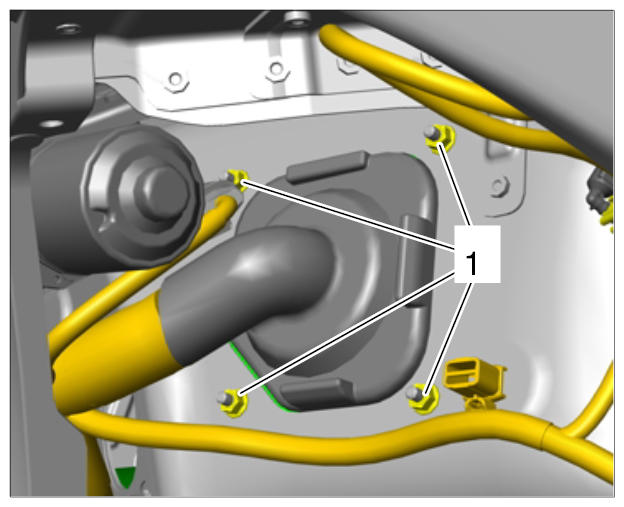

Feed-through element in firewall

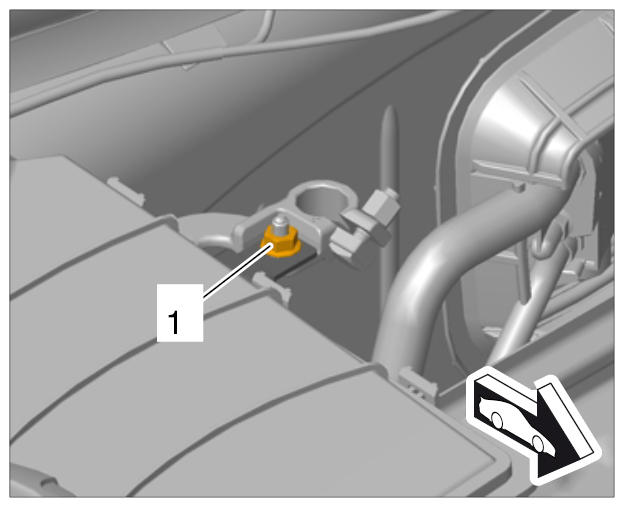

Fastening nut securing cable shoe on B+ line for battery to power distributor	M8	Tightening torque	12 Nm (9 ftlb.)
Fastening nut securing fuse box to positive terminal		Tightening torque	9.7 Nm (7.5 ftlb.)
Loosening fuse box
Fastening screw securing holder for engine compartment wire harness to body		Tightening torque	9.7 Nm (7.5 ftlb.)

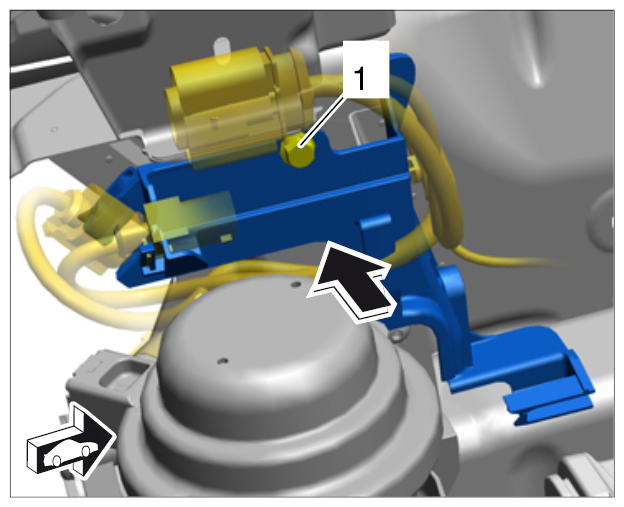

Securing holder
Fastening nuts securing ground strap to body	M6	Tightening torque	8.5 Nm (6.5 ftlb.)
Ground straps for main wire harness, left
Ground straps for main wire harness, right
Fastening nut securing fuse box at the right to body	M6	Tightening torque	9.7 Nm (7.5 ftlb.)
Fastening nut securing power supply line to power distributor	M6	Tightening torque	12 Nm (9 ftlb.)
Fastening nut securing fuse box at the left to body	M6	Tightening torque	9.7 Nm (7.5 ftlb.)
Fastening nuts securing bracket for control unit for front-end electronics to body	M6	Tightening torque	3.5 Nm (2.5 ftlb.)
Fastening screw securing front ground strap to roof	M5	Tightening torque	2.5 Nm (2 ftlb.)
Cable duct to cylinder head	M8	Tightening torque	23 Nm (17 ftlb.)
Electric line for term. 50 to starter	M6	Tightening torque	6.5 Nm (5 ftlb.)
Ground straps to valve cover	M6	Tightening torque	10 Nm (7.5 ftlb.)
Threaded connection for midrange loudspeaker		Tightening torque	3 Nm (2 ftlb.)
Ground strap to body		Tightening torque	15 Nm (11 ftlb.)
Fastening screw securing ground strap to engine, M8		Tightening torque	23 Nm (17 ftlb.)
Fastening screw securing ground strap to body, M8		Tightening torque	23 Nm (17 ftlb.)
Fastening nuts (M8) for battery lines in power distributor		Tightening torque	12 Nm (9 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Fastening nuts (M5) for fuse element in power distributor		Tightening torque	5 Nm (3.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Fastening nuts (M8) for cutoff relay		Tightening torque	12 Nm (9 ftlb.)	+/-1 Nm (+/- 0.5 ftlb.)
Fastening nut for cover on connection point for rear ABS		Tightening torque	2.5 Nm (2 ftlb.)

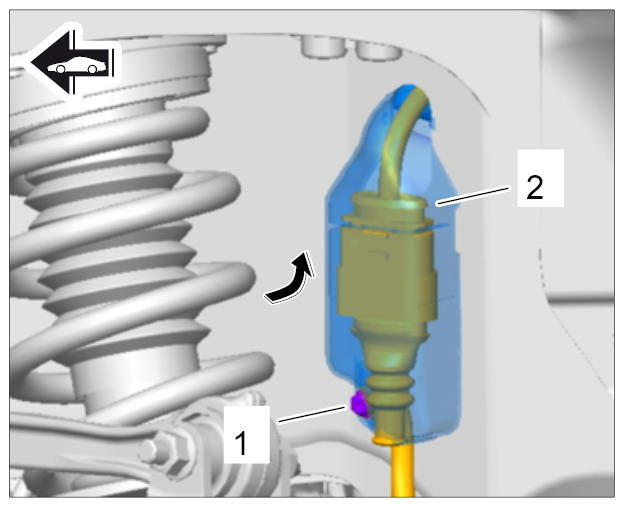

Securing cover
Threaded joint for alarm siren holder on compressor holder		Tightening torque	2.8 Nm (2 ftlb.)
