93 - Spray Nozzles For Windscreen Washer System

Location Description Type Basic value Tolerance 1 Tolerance 2
Spray range, front windscreen washer system (S1) from front lid to spray jet intersection point Adjustment value 480 mm +/-10 mm
G09998852

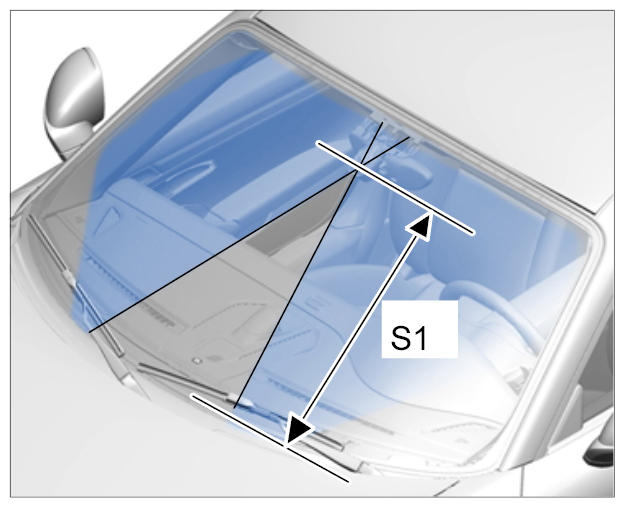

Spray pattern, front windscreen washer system
