92 - Windscreen Wiper And Washer System
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for windscreen-washer reservoir | Tightening torque | 10 Nm (7.5 ftlb.) | |||
| Fastening nut on wiper arm | Tightening torque | 25 Nm (19 ftlb.) | |||
| Wiper arm on passenger's side | Adjustment value | 10 mm | |||
| Wiper arm on driver's side | Adjustment value | 10 mm | |||
|

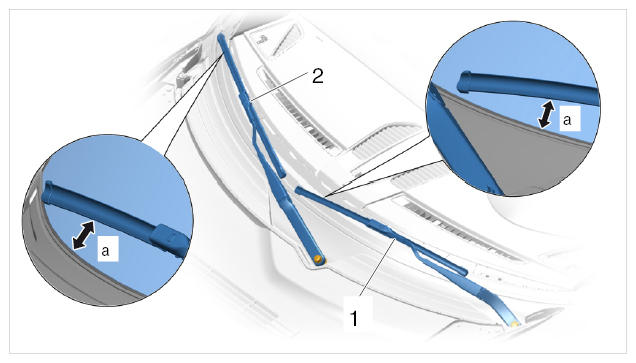

Adjusting wiper arm |
|||||
| Wiper arm for rear window washer to wiper motor | Tightening torque | 19 Nm (14 ftlb.) | |||
| Fastening screw securing wiper linkage to body | Screw on spring strut dome | Tightening torque | 23 Nm (17 ftlb.) | ||
| Fastening screw securing wiper linkage to body | Screws on bulkhead | Tightening torque | 11 Nm (8 ftlb.) | ||
|

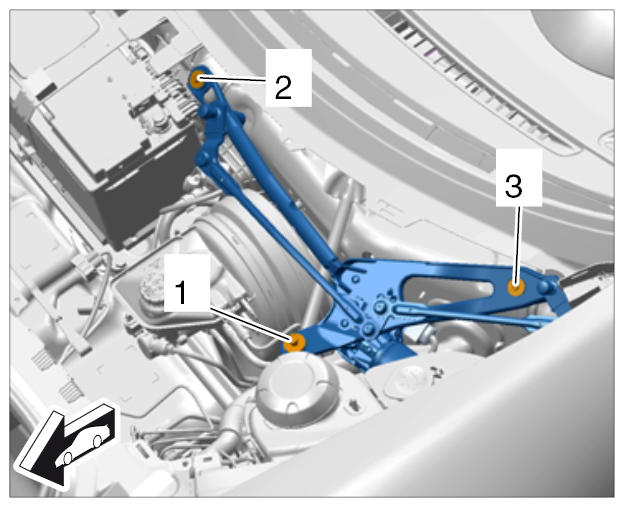

Threaded connection for wiper linkage |
|||||
| Fastening screw securing wiper motor for rear window washer to body | Tightening torque | 3 Nm (2 ftlb.) | |||
| Fastening nuts securing wiper motor for rear window washer to body | Tightening torque | 8 Nm (6 ftlb.) | |||
|

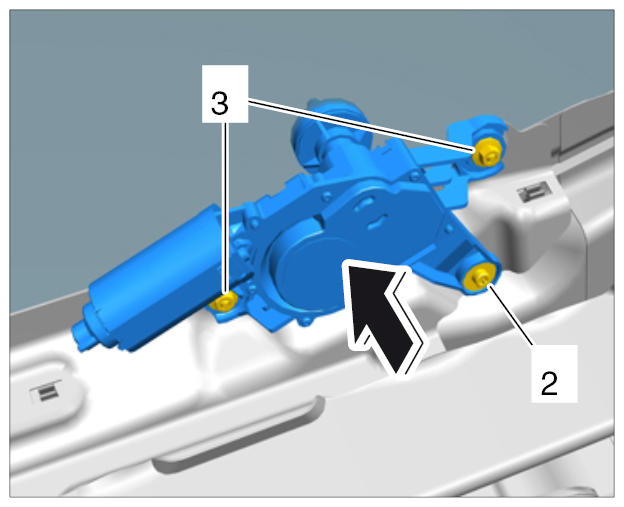

Installing wiper motor |
|||||
