Draining Oil For Front Final Drive: Notes

Unscrew differential oil filler screw -1- .

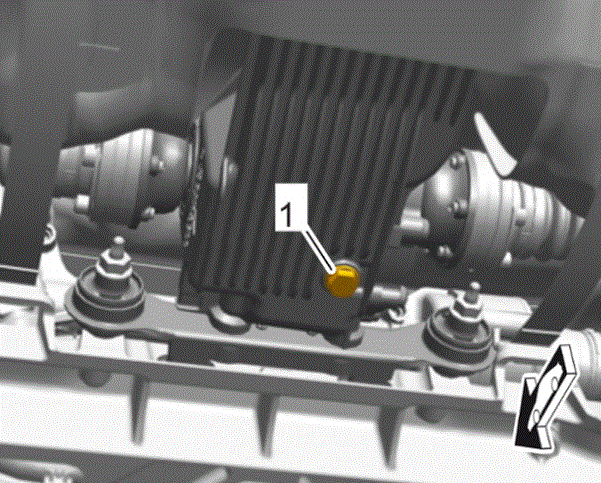

Fig 1: Identifying Differential Oil Filler Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot Fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew drain plug -1- and drain transmission oil.

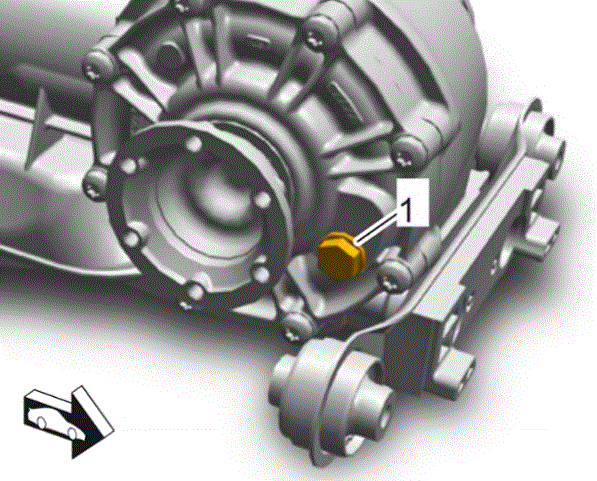

Fig 2: Identifying Differential Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
