39 - Final Drive - Differential, Differential Lock -- 911 CARRERA (991)
>>
WM 399055 Changing Oil For Front Final Drive
>>
Draining Oil For Front Final Drive
>>
Draining Clutch Fluid For Front Final Drive
Draining Clutch Fluid For Front Final Drive
Unscrew filler screw
-1-
WARNING:
Hot Fluid
Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Unscrew drain plug
-2-
and drain transmission oil.

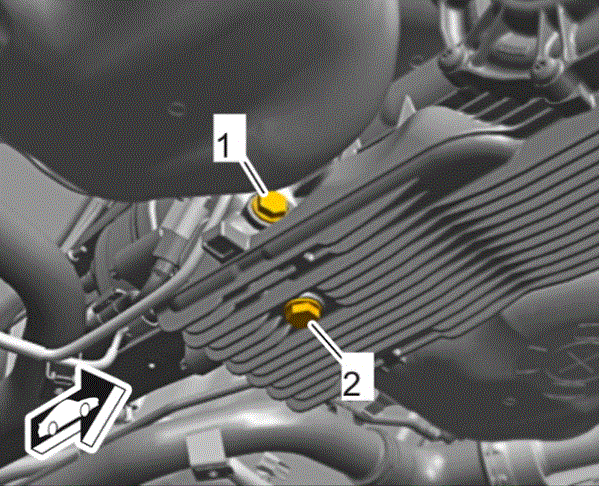

Fig 1: Identifying Clutch Fluid Filler Screw and Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
