Draining Oil For Front Differential

WARNING: Hot fluid
  • Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

  1. Unscrew filler screw -2-  .
  2. Unscrew drain plug -1-  and collect differential oil.

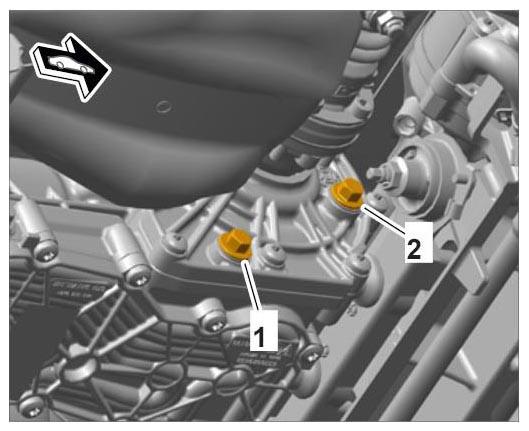

    Fig 1: Identifying Drain Plug And Filler Screw For Differential Oil
    G09992727Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clean the drain plug and filler screw and replace sealing rings.
