Adding Oil For Final Drive (With Transmission Oil)

  1. Top up oil for final drive.
    1. 1.1. Add oil for final drive using manual metering pumps, Porsche set WE 1372  until oil emerges at the filler opening.
  2. Screw in filler screw by hand.

    The transmission must be prepared in order to fill oil correctly and the oil level must be checked!

    → 399035 CHECKING AND TOPPING UP OIL FOR FINAL DRIVE (WITH TRANSMISSION OIL)  .

    Observe specification for GT3 vehicles!

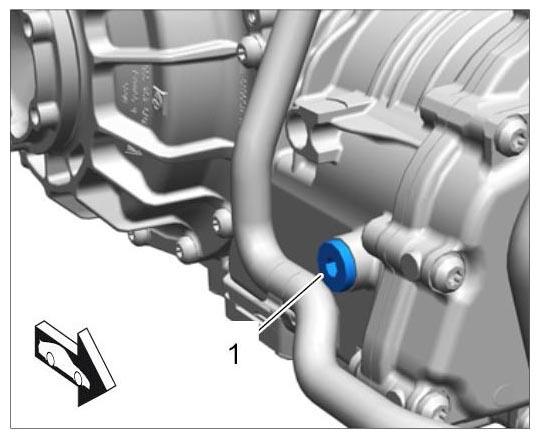

    Fig 1: Removing Oil Filler Screw/Inspection Plug
    G09992722Courtesy of PORSCHE CARS NORTH AMERICA, INC.
