WM 399035A9 Checking And Topping Up Oil For Final Drive (Transmission Oil): Information

View of transmission on Carrera, Carrera S, 911 R and Turbo/Turbo S:

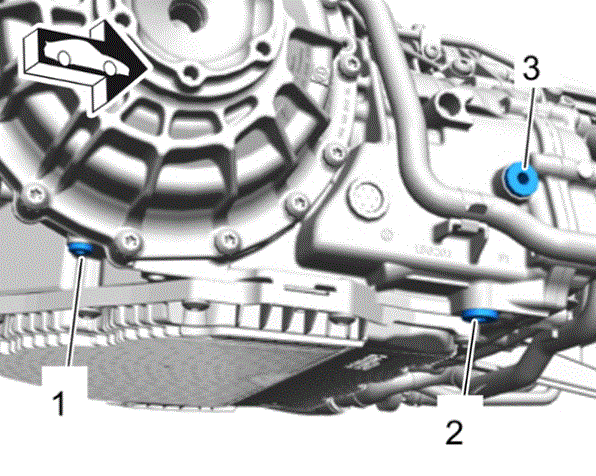

Fig 1: Installing Position Of Oil Filler Screws and Drain Plugs (View Of PDK Transmission)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1  Oil drain plug for differential space
2. 2  Oil drain plug for gearwheel set space
3. 3  Oil filler screw/inspection plug

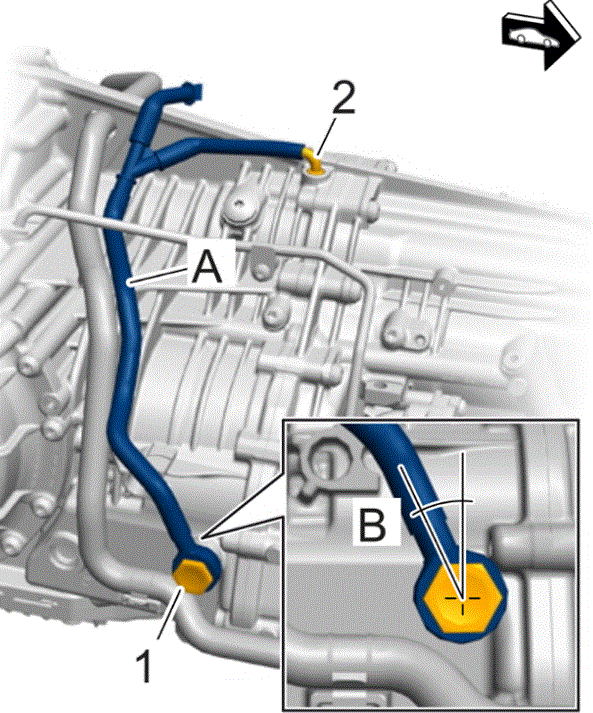

Fig 2: View Of Oil Filler Screw - GT3/GT3 RS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1  Banjo bolt with seals - replace seals
2. 2  Ventilation
3. A  Vent line
4. B  Line secured at an angle of 25 +/- 3 degrees
