Checking And Topping Up Oil For Final Drive

Information

Only use differential oil  approved by Porsche .

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Unscrew filler screw -1-  .

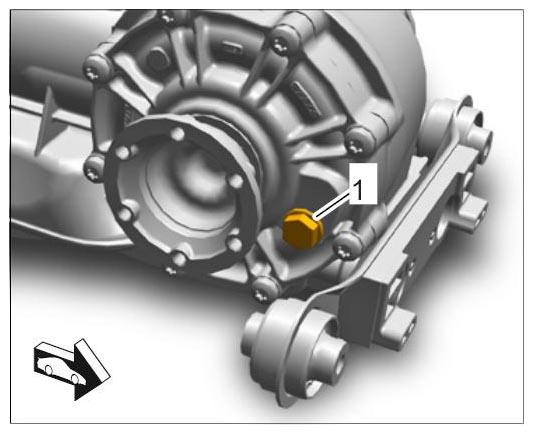

   Fig 1: Removing Differential Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check oil level.
   1. 2.1. The oil level is OK if differential oil emerges. Continue with Step  4.
   2. 2.2. If no differential oil emerges, the oil level in the final drive is too low. Continue with Step 3  .
3. Fill in differential oil up to the lower edge of the filler opening.
4. Clean oil filler screw and screw it in.
