Checking And Topping Up Oil For Electromagnetic Clutch

Information

Only use clutch fluid  approved by Porsche .

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Unscrew filler screw -1-  .

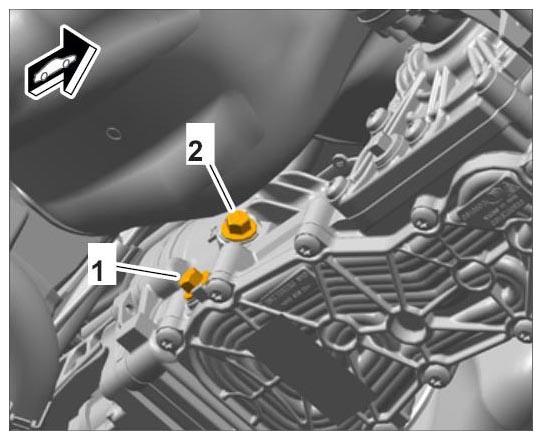

   Fig 1: Removing Clutch Fluid Filler Screw And Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check oil level.
   1. 2.1. The oil level is OK if clutch fluid emerges. Continue with Step  4.
   2. 2.2. If clutch fluid does not emerge, the oil level in the final drive is too low. Continue with Step 3  .
3. Fill in clutch fluid up to the lower edge of the filler opening.
4. Clean filler screw and screw it in (for tightening torque, see Technical Values  ).

Information

Only use clutch fluid  approved by Porsche .

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Unscrew filler screw -2-  .
   1. 1.1. Replace sealing ring and clean the filler screw.

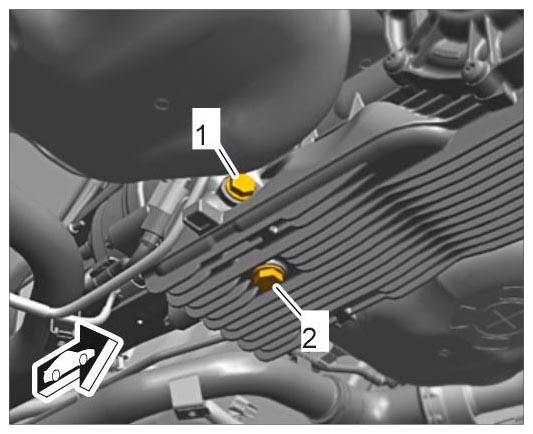

      Fig 1: Installing Drain Plug And Filler Screw For Clutch Fluid

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check oil level.
   1. 2.1. The oil level is OK if clutch fluid emerges. Continue with Step  4.
   2. 2.2. If clutch fluid does not emerge, the oil level in the final drive is too low. Continue with Step 3  .
3. Fill in clutch fluid up to the lower edge of the filler opening.
4. Screw in filler screw with a new sealing ring and tighten it.

   Tool recommendation: 3/8-inch torque wrench with open-end/ring wrench insert Nr.98-1 Pos.1

   Tightening torque 32 Nm (24 ftlb.) +/-4 Nm (+/-3 ftlb.)

5. Remove residual traces of oil from the transmission.
