Removing Sealing Ring For Cardan Flange

Information

• When you pull off the sealing ring, the lock ring can spring off and remain hanging on the output shaft.
• Always remove the lock ring.

1. Remove sealing ring -1-  for cardan flange.
   1. 1.1. On the slide hammer kit Nr.168 -3-  , screw on the hook attachment -2-  and pull off the sealing ring.

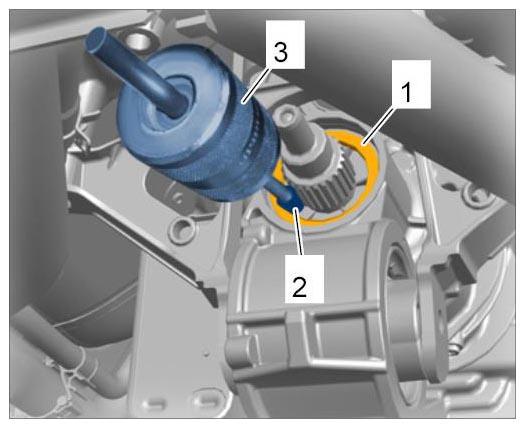

      Fig 1: Pulling Off Sealing Ring

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Soak up dripping transmission oil with a cloth.
