Installing Sealing Ring For Cardan Flange

Clean the sealing face.
Install new sealing ring for cardan flange.
1. 2.1. Grease the area between the dust and sealing lips -arrow- with Kluber Syntheso Glep.

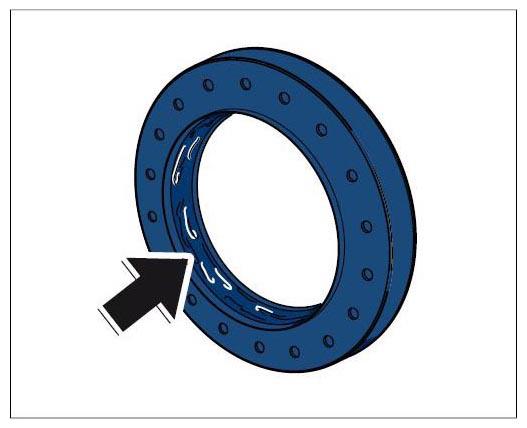

  Fig 1: Locating Sealing Ring Grease Applying Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Tap the sealing ring into the transmission as far as the tool face using pressure piece 9790/1 -1- .

  Fig 2: Tapping Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
