Removing Oil Pipe

Information

• Aluminum screws must always be replaced.
• Aluminum screws are secured using the yield-point-controlled method.
• Use special tool electronic torque wrench 9768 for this.
• To ensure that the screws are tightened uniformly, the specified tightening setting "light, medium or hard" must be used.

1. Unscrew M6 aluminum screws -2-  .

   Always replace aluminum screws!

   1. Oil pipe
   2. Aluminum screws
   3. Retaining bracket on oil pump housing
   4. Retaining bracket on transmission, top

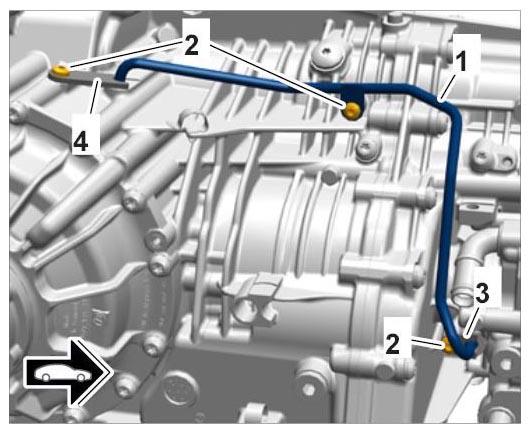

      Fig 1: Removing Oil Pipe On PDK

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull oil pipe -1-  out of the connection bores in the transmission.
   1. 2.1. Replace O-rings -2-  .

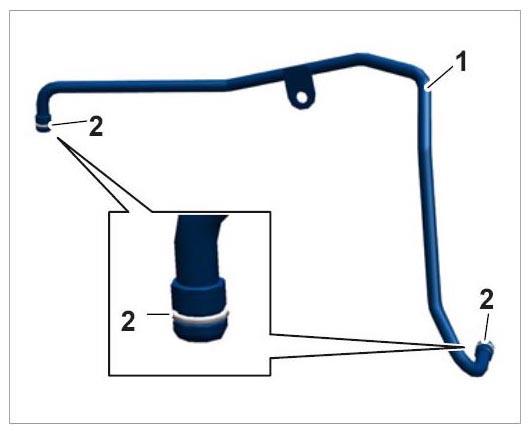

      Fig 2: Identifying Oil Pipe With O-Rings

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
