Installing Cardan Flange

Information

• The cardan flange is connected to the pinion shaft of the Porsche Doppelkupplung (PDK) with very narrow tolerances.
• Increased removal and installation forces must be overcome when removing and installing the cardan flange.
• Align tools perfectly in order to avoid tension and eliminate the possibility of the tool slipping off.

1. Fit cardan flange -1-  .
   1. 1.1. Degrease the pinion shaft journal (splines, thread) and halfshaft flange splines.
   2. 1.2. Heat cardan flange to approx. 120 °C.
   3. 1.3. Position cardan flange on the splines and tap it in using a socket-wrench insert Nr.64 -2-  until the cardan flange is flush.

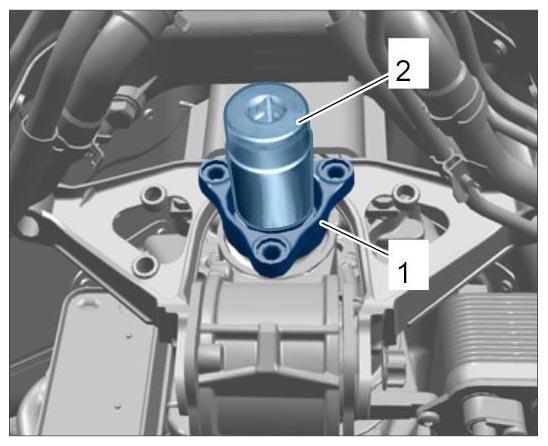

      Fig 1: Installing Cardan Flange

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw on and tighten new collar nut -2-  .
   1. 2.1. Initial tightening for set torque:
   2. 2.2. Loosen collar nut; final tightening:

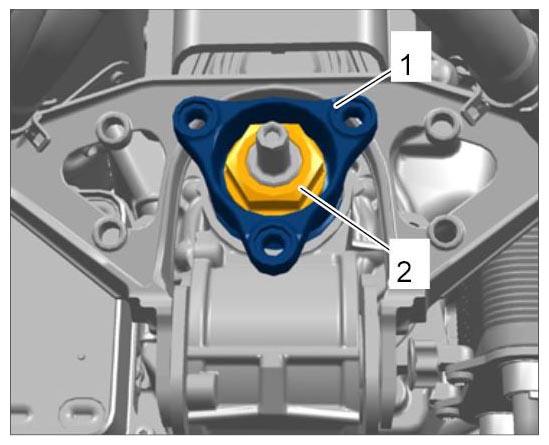

      Fig 2: Identifying Cardan Flange With Fastening Nut

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
