Installing All-Wheel Halfshaft Flange

Replace circlip for halfshaft flange.

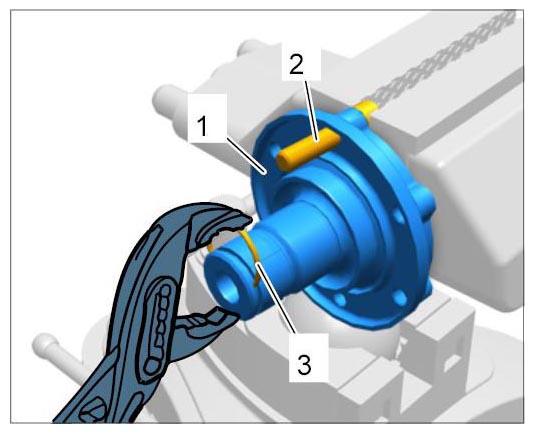

1. 1.1. To do this, clamp the flange -1- in the vice with a screw -2- and press out the old circlip using the new circlip -3- .
2. 1.2. Grease circlip for easier fitting.

  Fig 1: Replacing Circlip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lightly grease sealing ring with Liquid Moly PU53/WDR .
Install halfshaft flange.

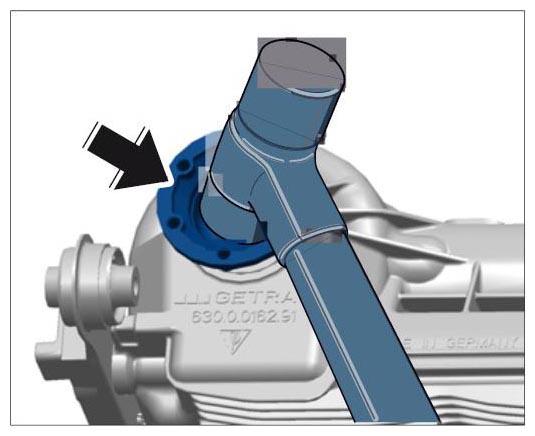

1. 3.1. Tap in halfshaft flange using a rubber hammer -arrow- .

  Fig 2: Tapping Halfshaft Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
