39 - Final Drive - Differential, Differential Lock -- 911 CARRERA (991)
>>
WM 395955 Replacing Sealing Ring For Front HALFSHAFT Flange (Except CARRERA, CARRERA S, 50-JAHRE 911, CARRERA GTS, CARRERA "Edition", CARR. CABRIO, CARR. S CABRIO, CARRERA GTS CABRIO, CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition", Gt3)
>>
Removing Sealing Ring For Front Halfshaft Flange
>>
Removing Sealing Ring
Removing Sealing Ring
On the
slide hammer kit Nr.168
, screw on hook attachment
-2-
and pull off sealing ring
-1-
.

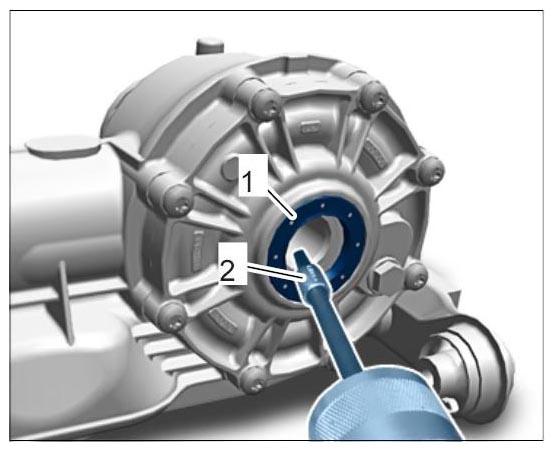

Fig 1: Pulling Off Sealing Ring For Halfshaft Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean the sealing face.
