Installing Sealing Ring

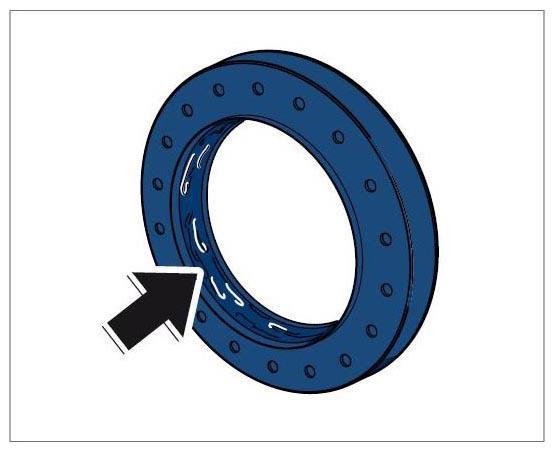

Grease new sealing ring between the dust and sealing lips with Kluber Syntheso Glep -arrow- .

Fig 1: Locating Sealing Ring Grease Applying Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

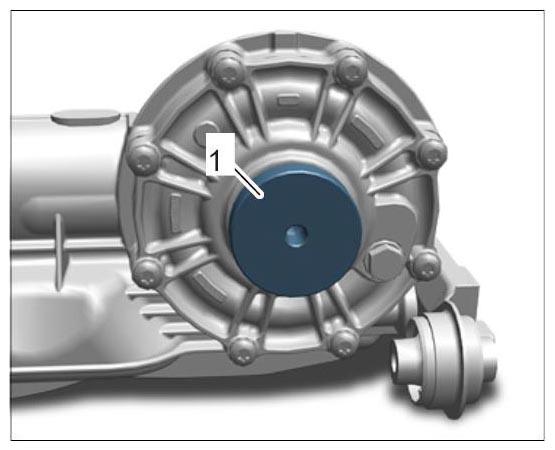

Use pressure piece 9537 to tap the sealing ring into the cover for final drive until it is flush.

Fig 2: Fitting Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
