Removing Cover

  1. Lever off halfshaft flange -1-  with a mounting lever -2-  and pull it out.

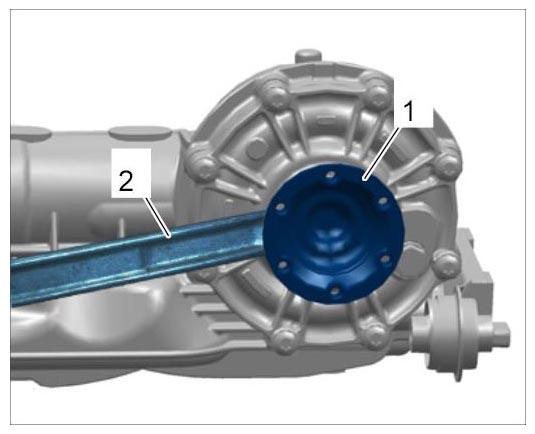

    Fig 1: Identifying Lever And Halfshaft Flange
    G09992661Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off sealing ring.

    → 395955 REPLACING SEALING RING FOR FRONT HALFSHAFT FLANGE .

  3. Unscrew screws -2-  on cover -1-  for final drive.

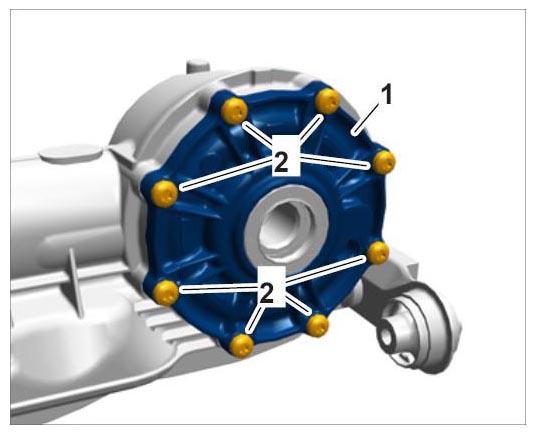

    Fig 2: Identifying Threaded Joint For Cover For Wheel Final Drive
    G09992662Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove cover for final drive.
    1. 4.1. Turn cover -1-  axially and loosen it evenly by tapping gently with a rubber hammer -2-  or plastic wedge.

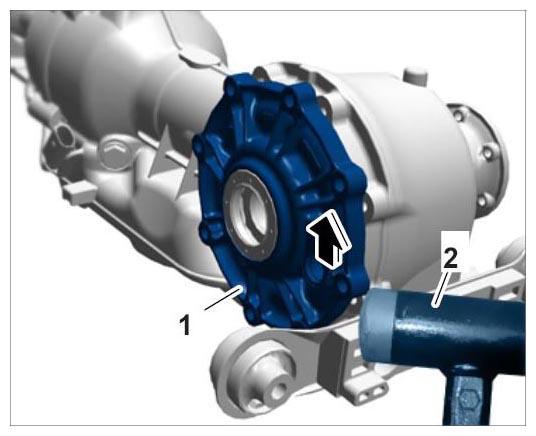

      Fig 3: Loosening Cover For Final Drive
      G09992663Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 4.2. Lift cover -1-  with differential out of the housing -2-  .

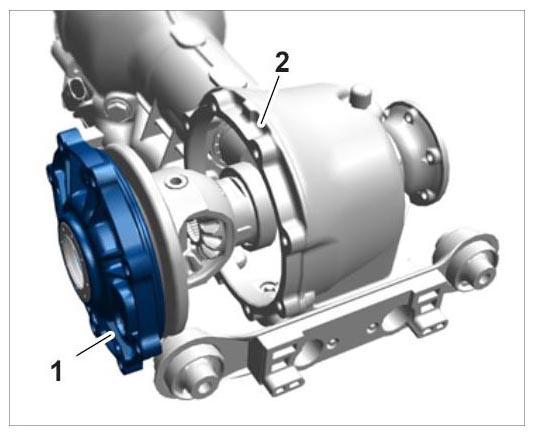

      Fig 4: Identifying Cover For Final Drive With Differential
      G09992664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 4.3. Replace O-ring.
