39 - Final Drive - Differential, Differential Lock -- 911 CARRERA (991)
>>
WM 392255 Replacing Sealing Rings For Left HALFSHAFT Flange - Manual Transmission (Except CARRERA "Edition", CARRERA Cabriolet "Edition", Turbo, Turbo S, CARRERA 4 "Edition", Turbo CABRIO, Turbo S CABRIO, CARRERA 4 Cabriolet "Edition", Gt3)
>>
Removing Sealing Rings For Left Halfshaft Flange
>>
Removing Centre Sealing Ring For Halfshaft Flange
Removing Centre Sealing Ring For Halfshaft Flange
Pull center sealing ring
-1-
out of the transmission housing using
slide hammer kit Nr.168
.

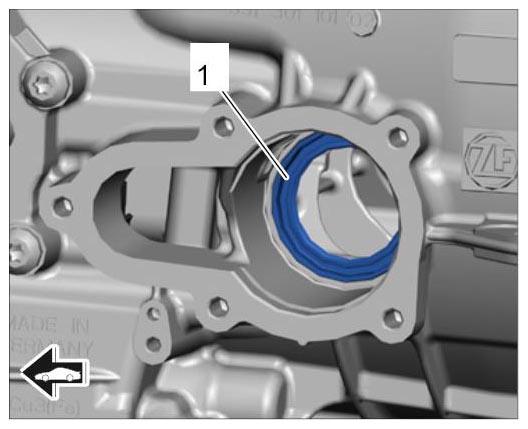

Fig 1: Removing Centre Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
