Installing Centre Sealing Ring For Halfshaft Flange

Information

• Check that the sealing ring is seated correctly on the tool.

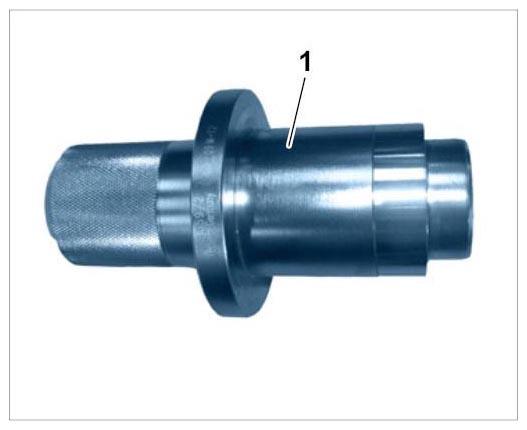

• The sealing ring is fitted dry. Do not touch the sealing lip! Pressure piece 9359/2 -1-  :
  Fig 1: Fitting Sealing Ring For Clutch Chamber

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

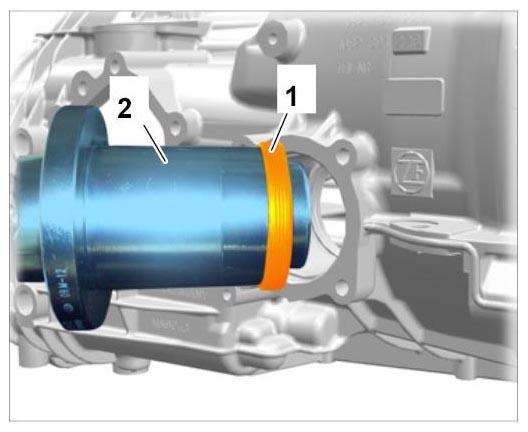

1. Place sealing ring -1-  on pressure piece 9359/2 -2-  .

   Check installation position; sealing lip must be facing the tool!

   Fig 2: Identifying Sealing Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

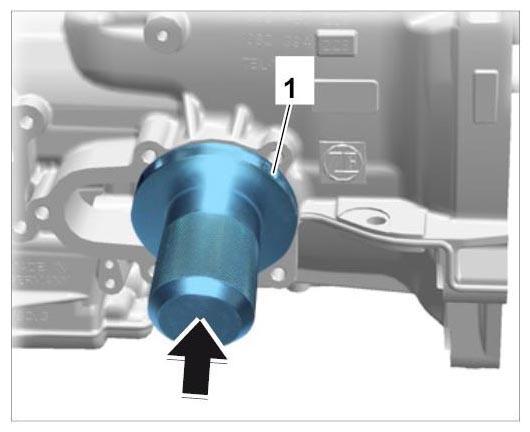

2. Press center sealing ring as far as it will go into the transmission housing using pressure piece -1-  .
   1. 2.1. Hold the pressure piece at the end position for one minute and press again carefully if necessary.
      Fig 3: Fitting Sealing Ring Using Tool 9359/2

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
