Removing Sealing Ring For Right Halfshaft Flange

  1. Puller T10037 -1-  must now be fitted using two M10 screws -2-  on the halfshaft flange -3-  .

    Caution: fine thread!

    1. 1.1. Use spacer sleeves or nuts to prevent the screws from touching the transmission.
    2. 1.2. Pull off and remove halfshaft flange -3-  ,

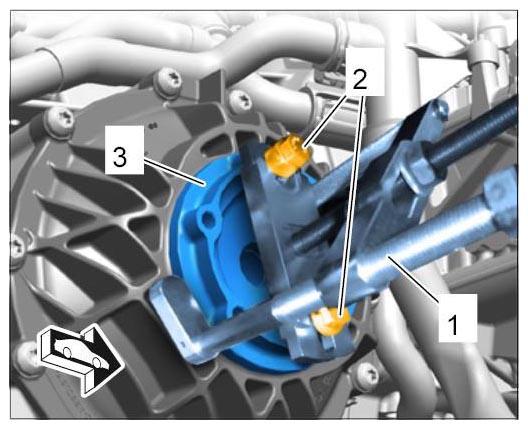

      Fig 1: Pulling Off Halfshaft Flange
      G09992605Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully lever the sealing ring -1-  out of the transmission using an assembly wedge or screwdriver -2-  .

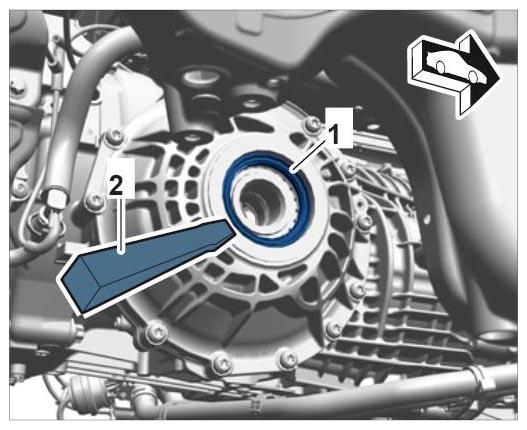

    Fig 2: Removing Sealing Ring
    G09992606Courtesy of PORSCHE CARS NORTH AMERICA, INC.
