Installing Sealing Ring For Right Halfshaft Flange

Information

• Check that the sealing ring is seated correctly on the tool.
• The sealing ring is fitted dry. Do not touch the sealing lip!

1. Place sealing ring on pressure piece 9790  .
2. Tap sealing ring into the transmission using pressure piece -1-  .
   1. 2.1. Hold the tool at the stop for one minute and tap it again carefully if necessary.

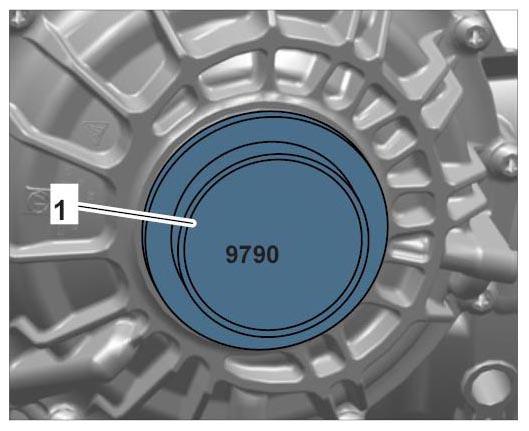

      Fig 1: Identifying Sealing Ring With Pressure Piece 9790

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Replace circlip -3-  on the halfshaft flange -1-  .
   1. 3.1. Clamp the halfshaft flange in a vice using a screw -2-  .
   2. 3.2. Press out the old circlip using the new circlip.

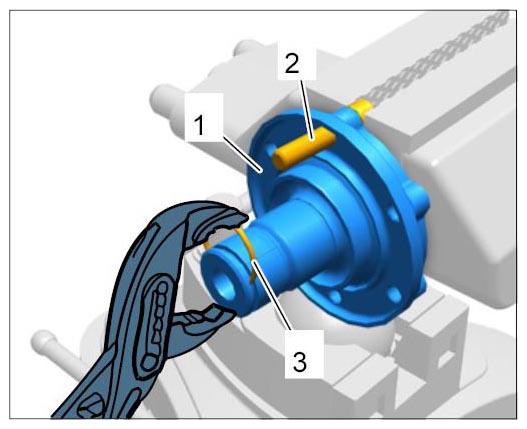

      Fig 2: Replacing Circlip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install halfshaft flange -1-  .
   1. 4.1. Check halfshaft flange for burrs and sharp edges on the transmission end of the shaft and de-burr if necessary -arrow-  .
   2. 4.2. Fit halfshaft flange on the transmission and tap it in using a rubber hammer.

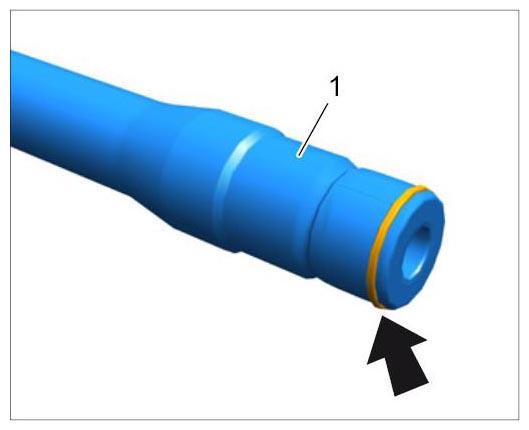

      Fig 3: Locating Halfshaft Flange
