Remove Brake Spoiler (Gt3 Only)

  1. Unscrew fastening screws.
  2. Remove brake spoiler -1-  from transverse control arm.

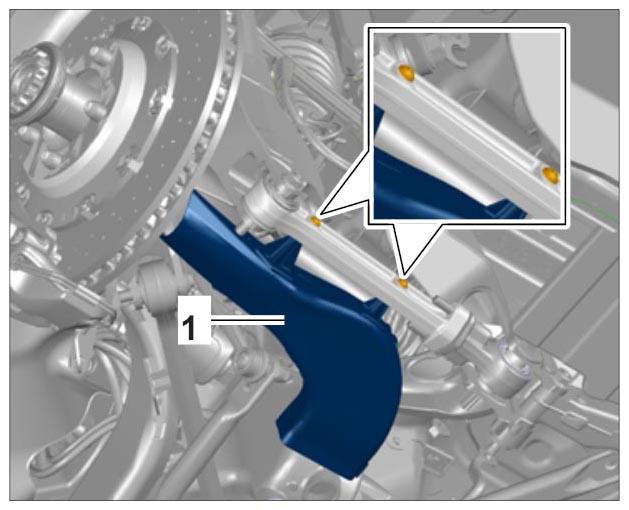

    Fig 1: Identifying Brake Spoiler
    G09993908Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove wheel. → 440519 REMOVING AND INSTALLING WHEEL → 440519 REMOVING AND INSTALLING WHEEL WITH CENTRAL BOLT
  4. Unscrew fastening nuts -1-  and fastening screws -2-  .

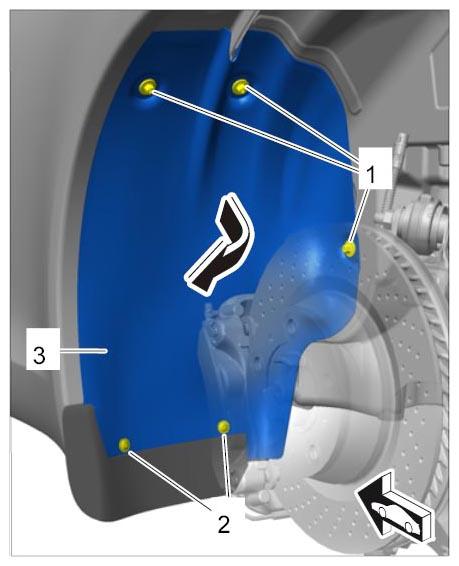

    Fig 2: Removing Rear Wheel Housing Liner
    G09993909Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull rear wheel housing liner -3-  out slightly and guide it out of the edge of the wheel arch -arrow-  .
