Removing Rear Wheel Housing

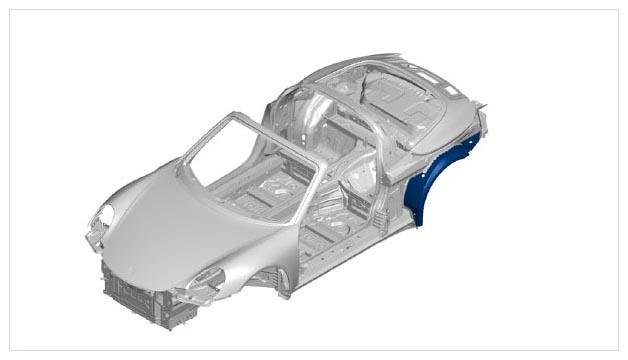

Fig 1: Rear Wheel House Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using Spotweld Drill Nr. 129  .

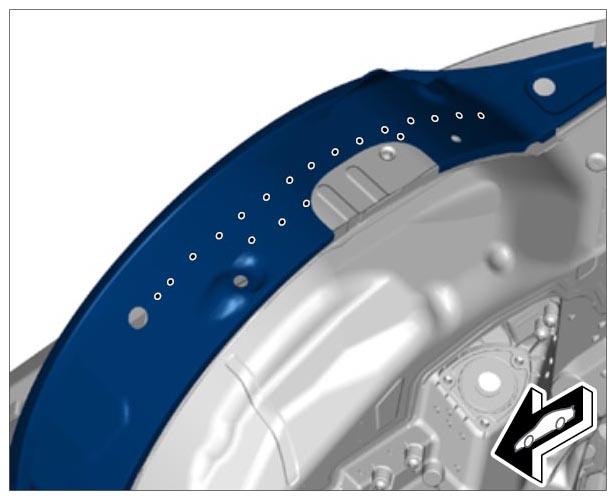

   Fig 2: Identifying Rear Wheel Housing Spotwelds Area (1 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

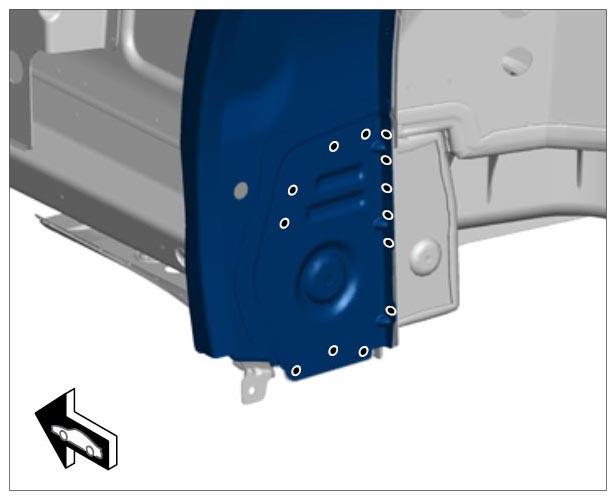

   Fig 3: Identifying Rear Wheel Housing Spotwelds Area (2 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

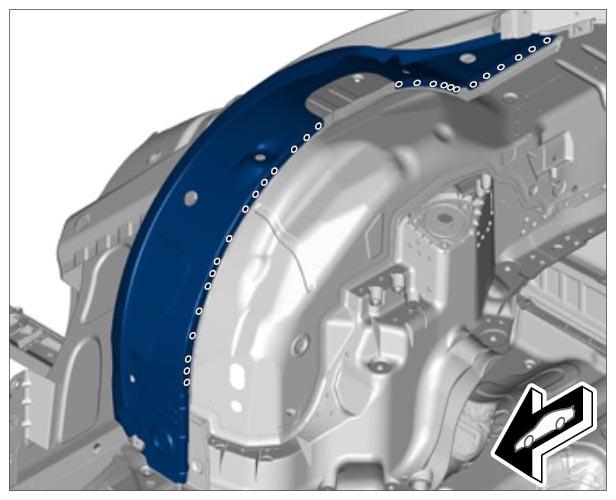

   Fig 4: Identifying Rear Wheel Housing Spotwelds Area (3 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat the marked bonding areas.

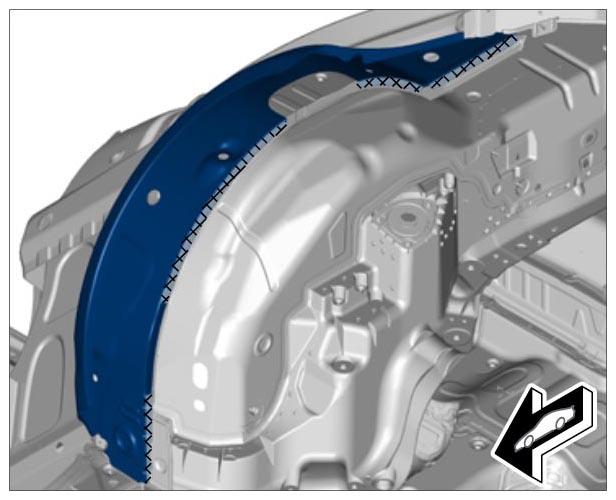

Fig 5: Identifying Rear Wheel Housing Bonding Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Remove the rear wheel housing.
