Preparing Rear Wheel Housing For Installation

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Prepare the marked connection areas on the rear wheel housing for welding, bonding and riveting.

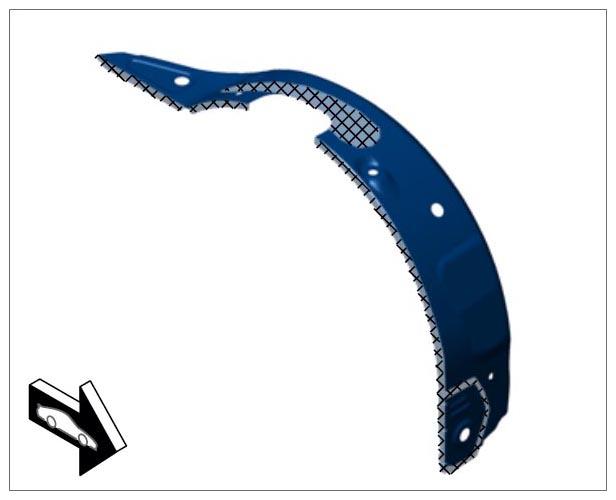

   Fig 1: Identifying Rear Wheel Housing Connection Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Drill rivet holes in area -A-  using → Diameter: 6.6 mm  .

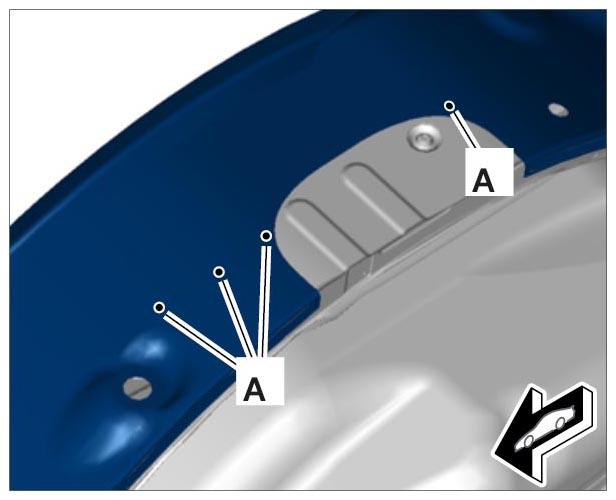

Fig 2: Identifying Rear Wheel Housing Hole Drilling Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
