Installing Rear Wheel Housing

Install the rear wheel housing and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Apply adhesive. → Application Depth: 3.0 mm
Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

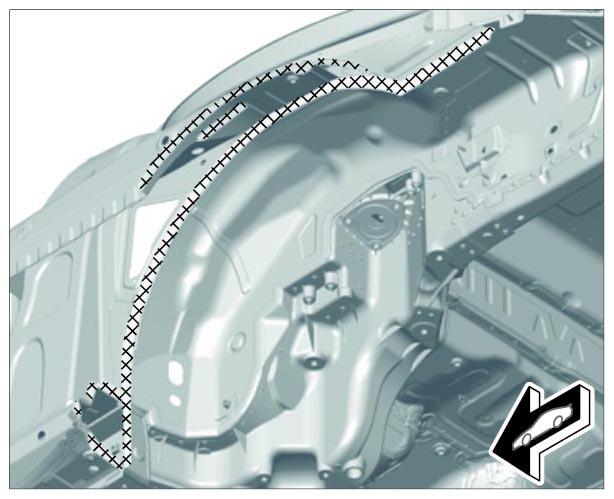

Fig 1: Identifying Rear Wheel Housing Adhesive Applying Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance spot-weld the rear wheel housing.

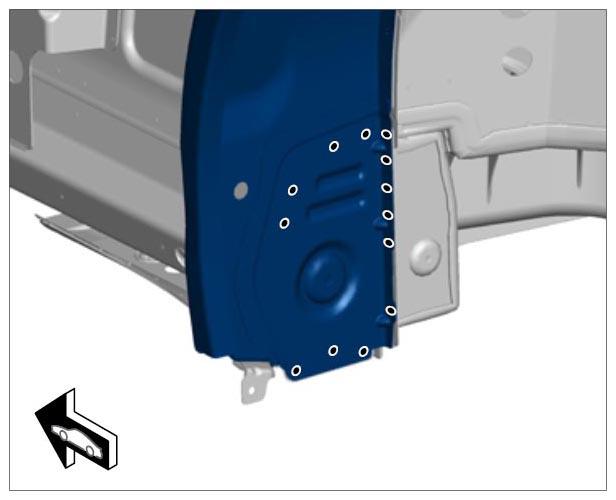

Fig 2: Identifying Rear Wheel Housing Resistance Spot-Weld Area (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

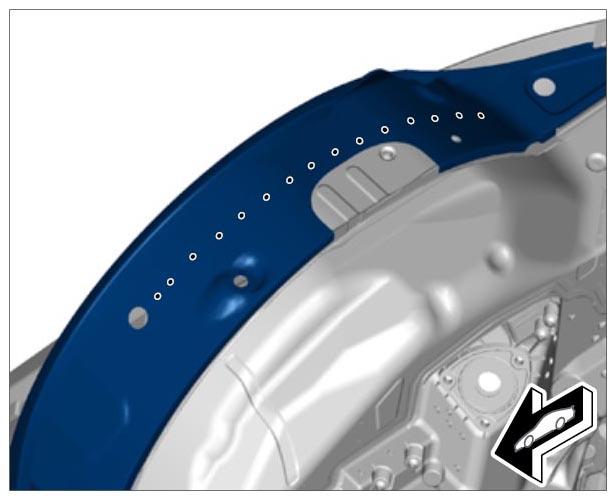

Fig 3: Identifying Rear Wheel Housing Resistance Spot-Weld Area (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

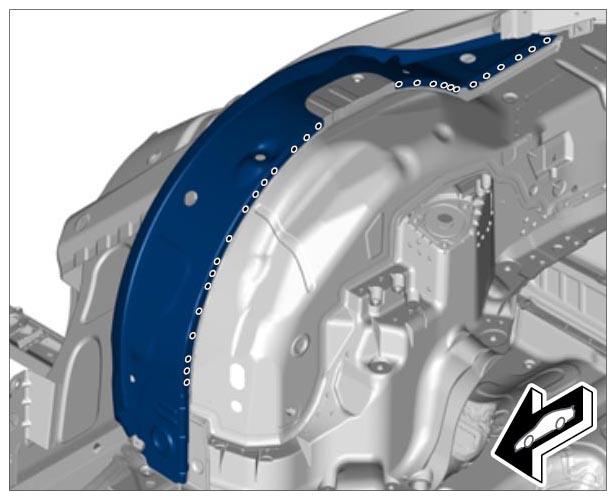

Fig 4: Identifying Rear Wheel Housing Resistance Spot-Weld Area (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet in area -A- . → BLIND RIVET 999.190.227.01

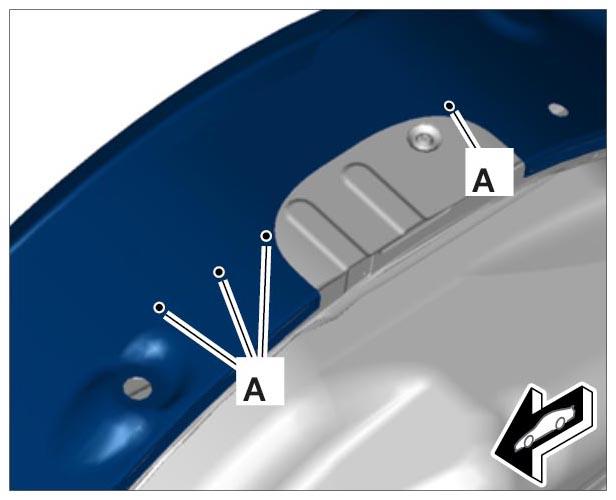

Fig 5: Identifying Rear Wheel Housing Rivet Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only relevant for turbo vehicles
Remove transport lock -1- after securing the wheel housing in the marked areas -arrows- .

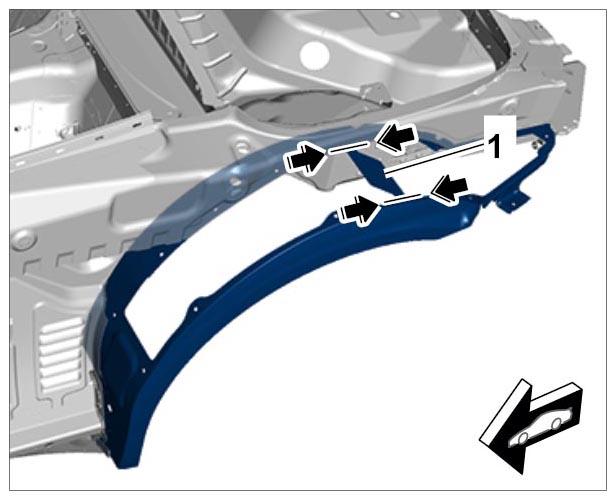

Fig 6: Removing Transport Lock
