Removing Side Panel

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

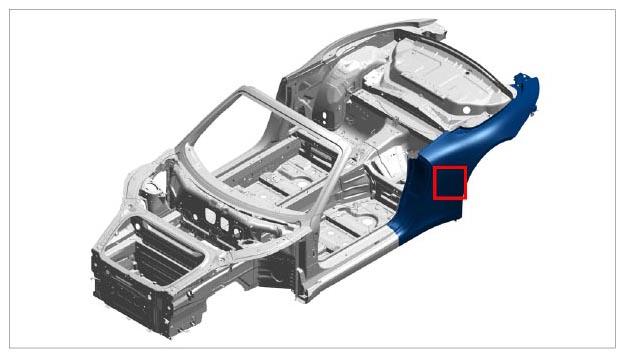

Fig 1: Rear Side Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Mark cuts.
   1. 1.1. Mark cut on the side member in accordance with the new part.

   Information

   Mark cut in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

   → Gap: 120 mm

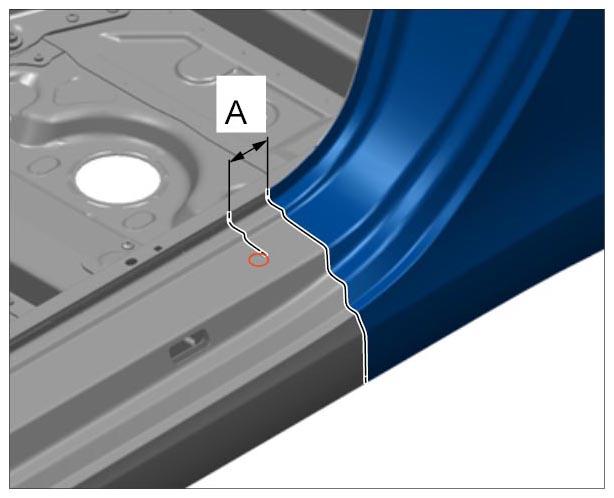

   Fig 2: Identifying Cutting Area On Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Cut side panel in the marked areas. Special Electric Cutter - Fine WE 1137 Pneumatic Body Saw PS 1 WE 1138

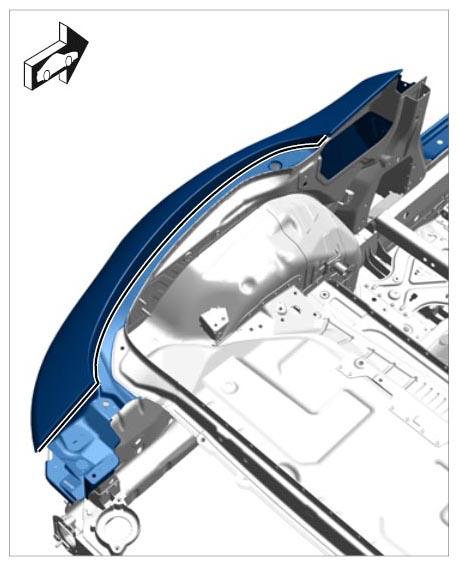

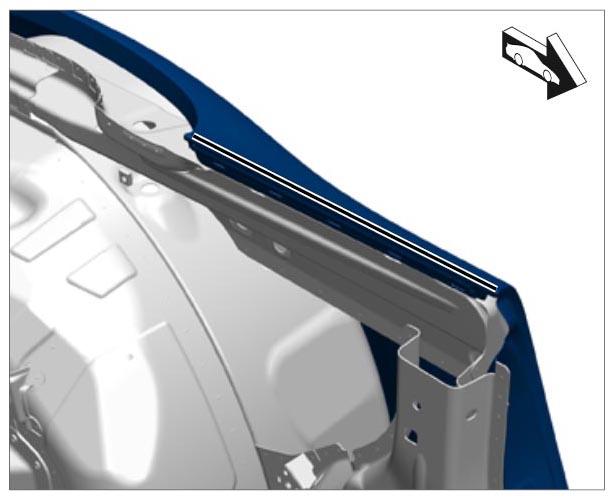

   Fig 3: Identifying Cutting Area On Side Panel (1 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

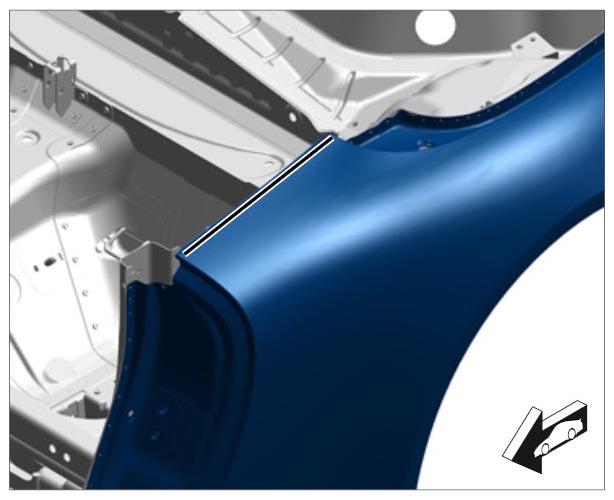

   Fig 4: Identifying Cutting Area On Side Panel (2 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 5: Identifying Cutting Area On Side Panel (3 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

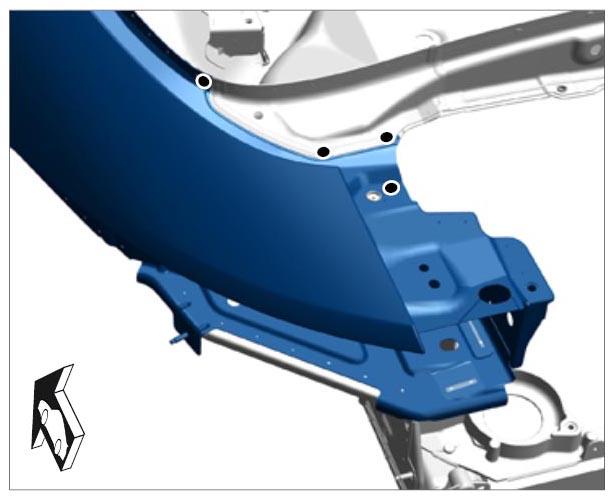

3. Drill out spotwelds. Spotweld Drill Bit Nr. 129 Pneumatic Spotweld Remover, Vario Drill WS 90 WE 1139

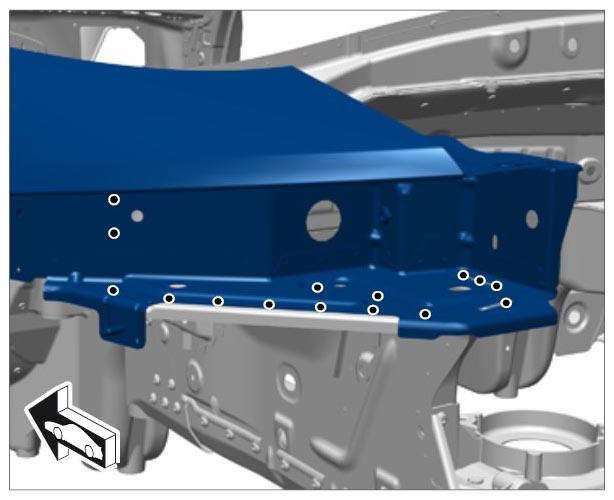

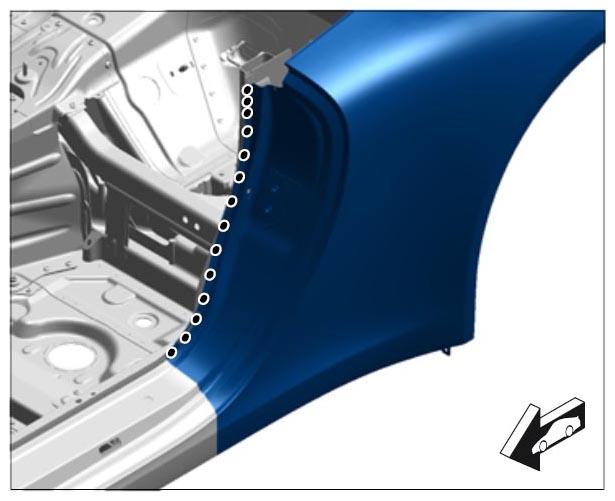

   Fig 6: Identifying Side Panel Drilling Out Spotwelds Areas (1 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

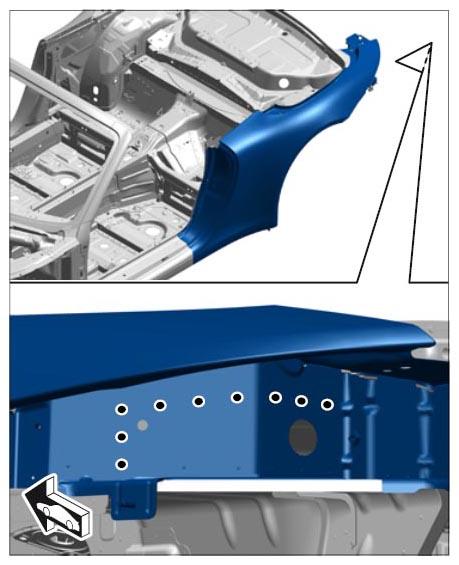

   Fig 7: Identifying Side Panel Drilling Out Spotwelds Areas (2 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

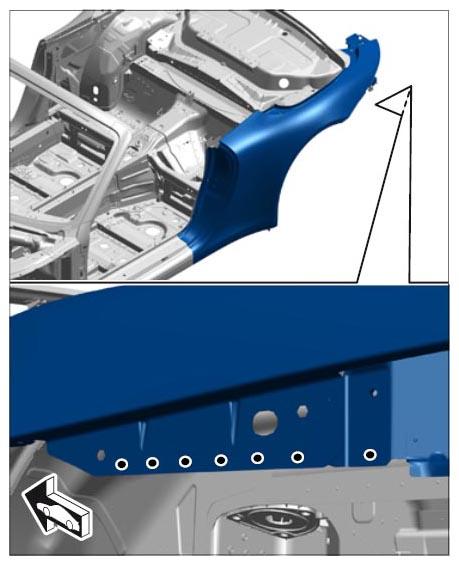

   Fig 8: Identifying Side Panel Drilling Out Spotwelds Areas (3 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

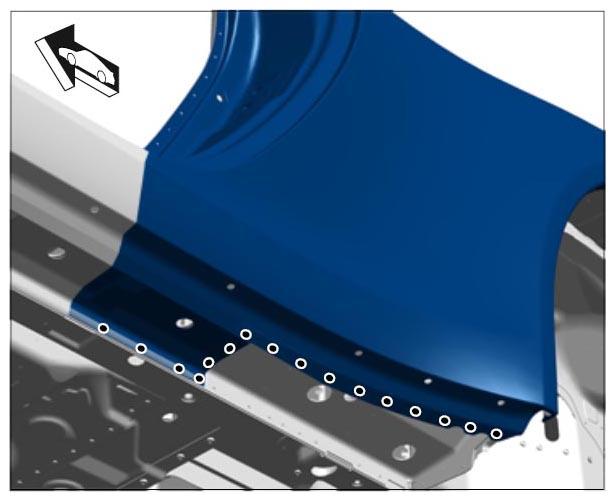

   Fig 9: Identifying Side Panel Drilling Out Spotwelds Areas (4 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 10: Identifying Side Panel Drilling Out Spotwelds Areas (5 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 11: Identifying Side Panel Drilling Out Spotwelds Areas (6 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 12: Identifying Side Panel Drilling Out Spotwelds Areas (7 Of 7)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Heat bonding areas. Hot-Air Blower, Leister-Electron/VAG 1416 WE 1119

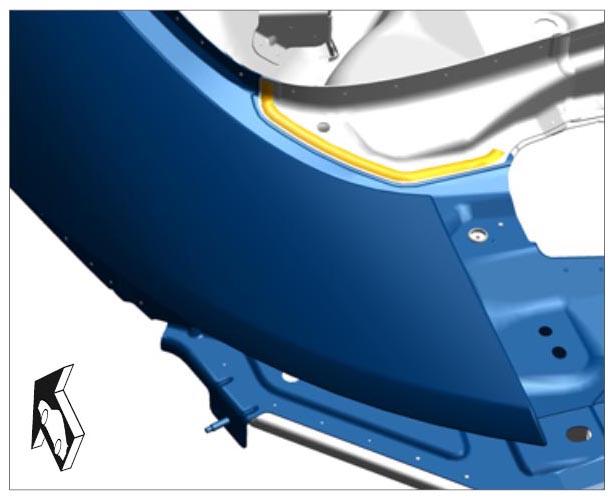

   Fig 13: Identifying Side Panel Bonding Areas (1 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 14: Identifying Side Panel Bonding Areas (2 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 15: Identifying Side Panel Bonding Areas (3 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove side panel.
6. Drill out spotwelds. Spotweld Drill Bit Nr. 129 Pneumatic Spotweld Remover, Vario Drill WS 90 WE 1139

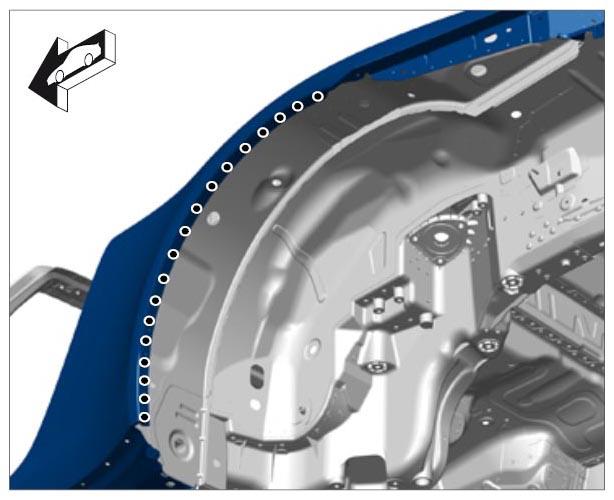

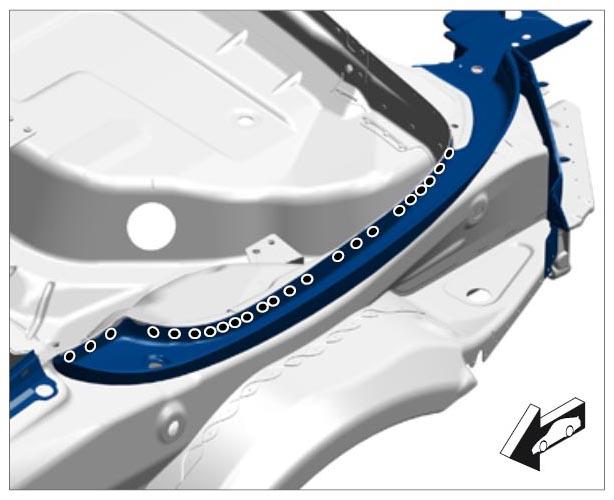

   Fig 16: Identifying Side Panel Drilling Out Spotwelds

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Heat bonding areas. Hot-Air Blower, Leister-Electron/VAG 1416 WE 1119

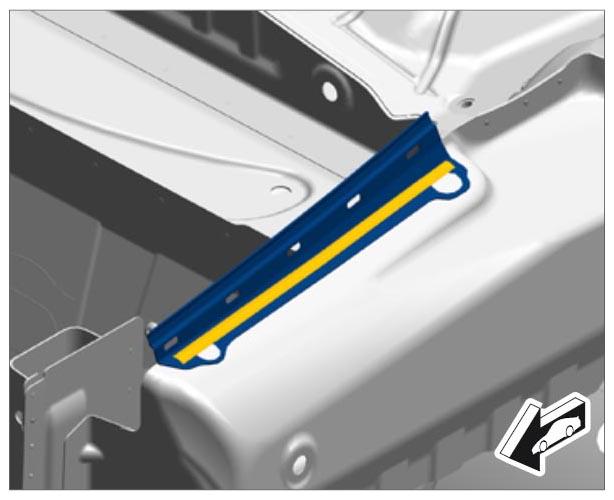

   Fig 17: Identifying Side Panel Bonding Areas (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 18: Identifying Side Panel Bonding Areas (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove remaining sections of the side panel.
