Removing Cross Member

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

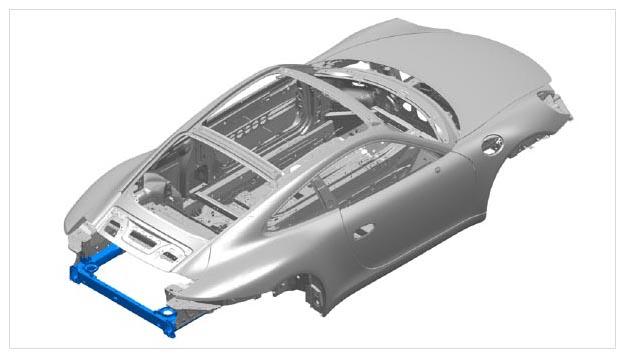

Fig 1: Cross Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen threaded connections.
   1. 1.1. Unscrew screws.

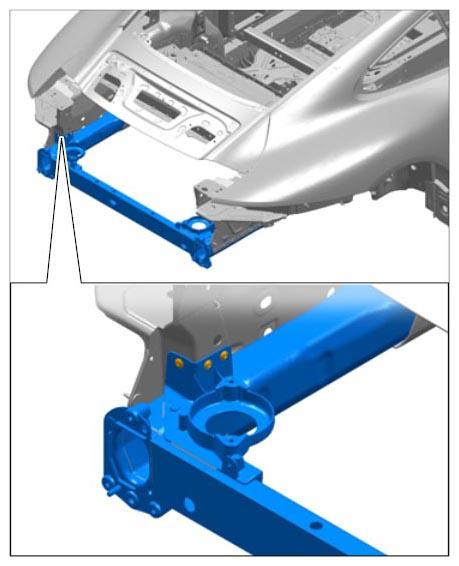

      Fig 2: Identifying Cross Member Screws (1 Of 4)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

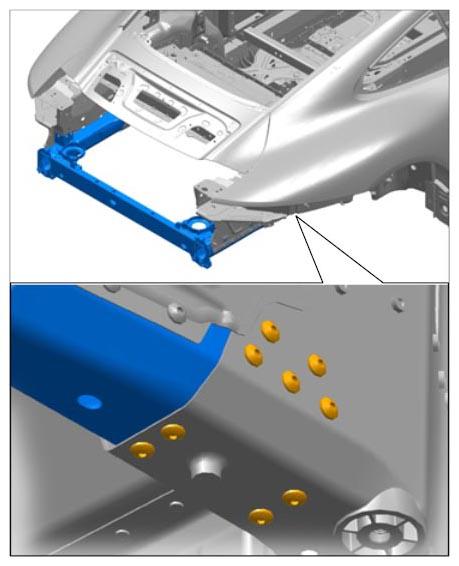

      Fig 3: Identifying Cross Member Screws (2 Of 4)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

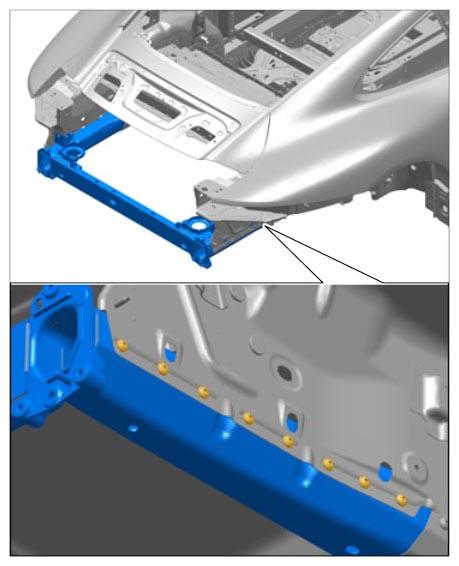

      Fig 4: Identifying Cross Member Screws (3 Of 4)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

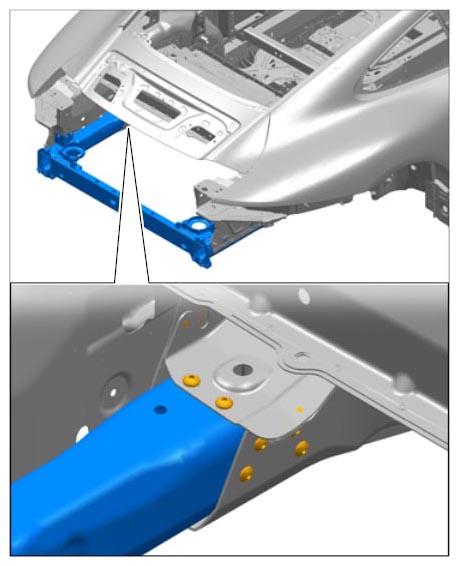

      Fig 5: Identifying Cross Member Screws (4 Of 4)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Heat up bonded areas.

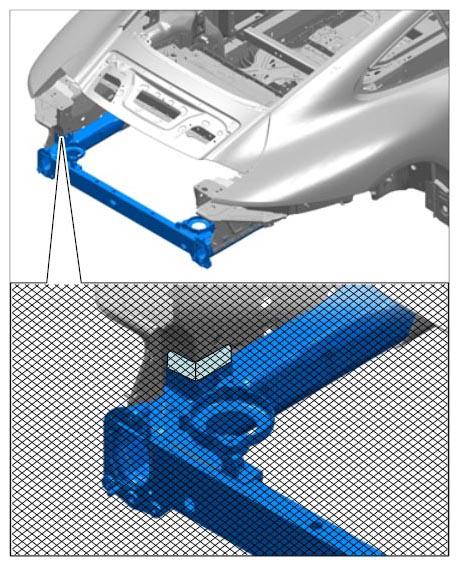

   Fig 6: Identifying Cross Member Bonded Area (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

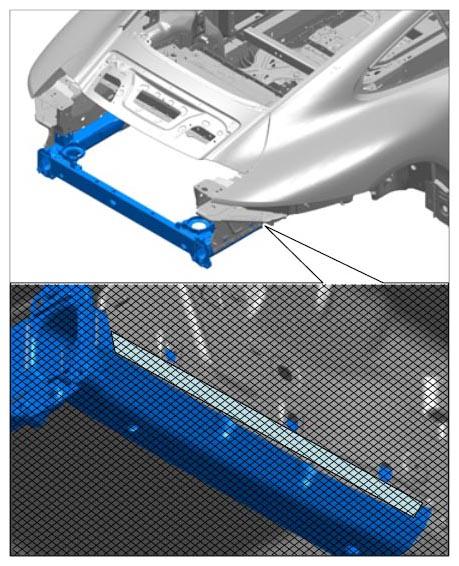

   Fig 7: Identifying Cross Member Bonded Area (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove cross member.
