Preparing Connection Areas Of Body For Installing The Rear End: Notes

Align the sealing surface and connections of the body.
De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Prepare marked areas for welding and bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE - section on "Preparing"

Blue	Bonding + Resistance Spot-Welding
Orange	Bonding + Riveting

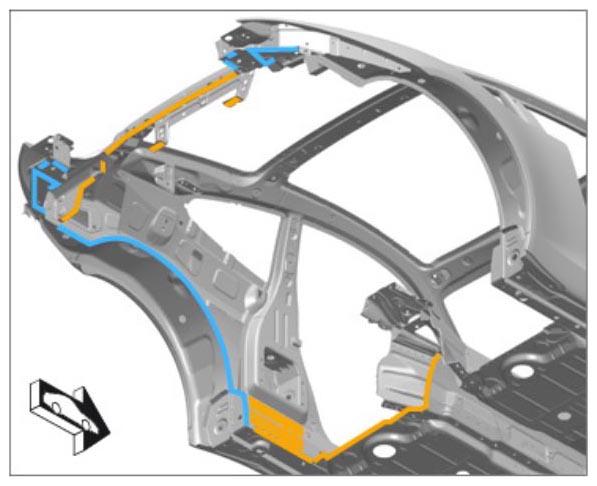

Fig 1: Identifying Body Connection Points Welding And Bonding Area (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

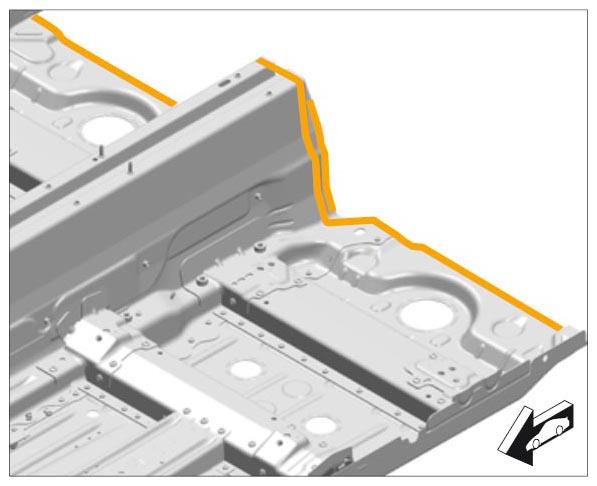

Fig 2: Identifying Body Connection Points Welding And Bonding Area (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
