Removing Cover For Rear Underbody

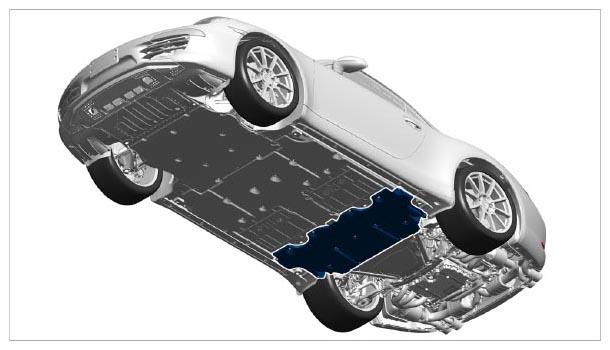

Fig 1: Cover For Rear Underbody Component Location (Carr. Cabrio, Carr. S Cabrio, Carrera Gts Cabrio, Carr. 4 Cabrio, Carr. 4S Cabrio, Turbo Cabrio, Carr. 4 Gts Cabrio, Turbo S Cabrio)
G09993755Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -2-  and fastening nuts -3-  .

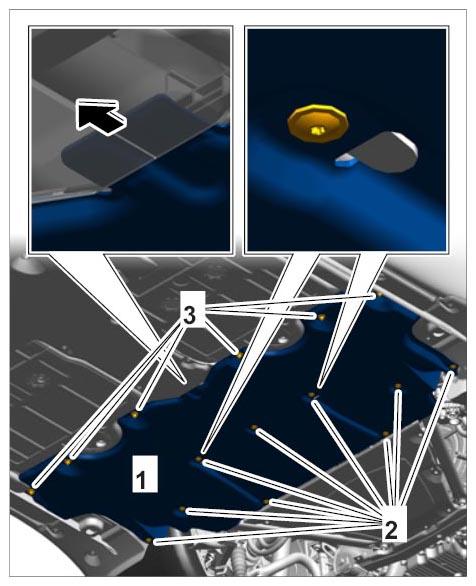

    G09993756Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off cover -1-  at the tabs -arrows-  .
  3. Remove cover for rear underbody -1-  .
