Installing Seat Cross Member

Install the seat cross members and check that they fit perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

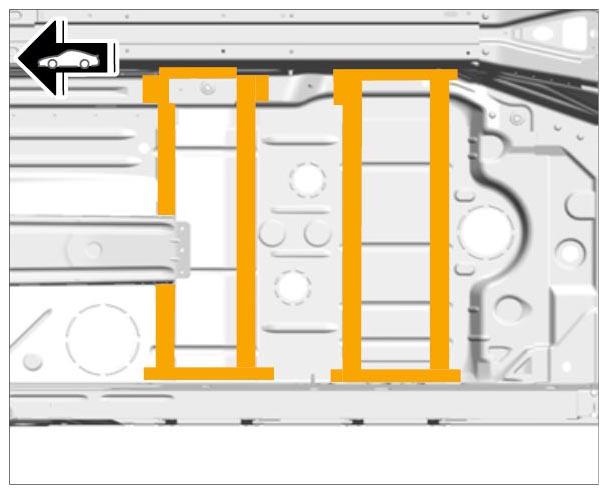

Apply adhesive. → Application depth: 3.0 mm
Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

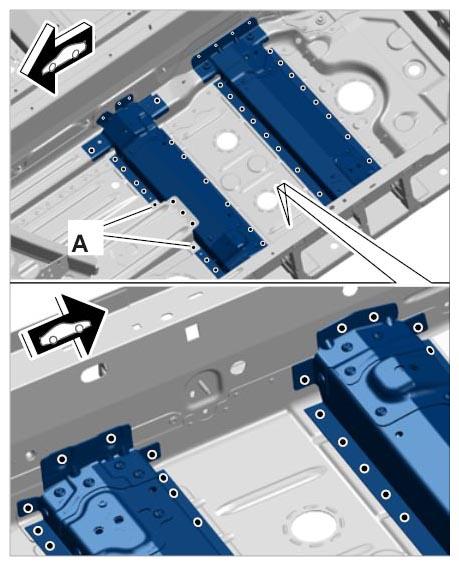

Rivet-in the seat cross members. → BLIND RIVET 999.190.227.01

3.1. Rivet in area -A- . → BLIND RIVET 999.190.230.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
