Preparing Body Front Section For Installation

Fit body front section and secure it to the body. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION")
Position body front section using the straightening system.
1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.6 mm

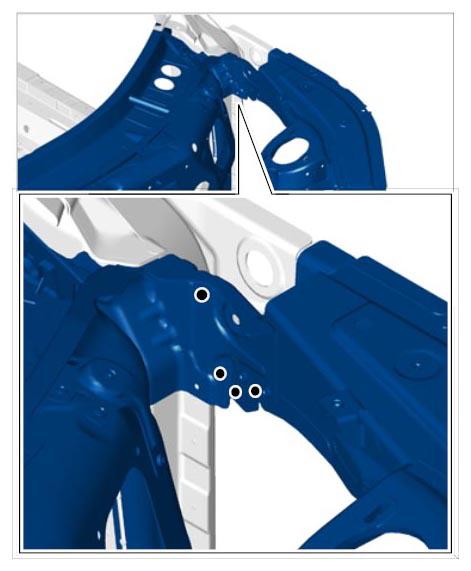

  Fig 1: Identifying Upper Longitudinal Member Area Drilling Holes
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

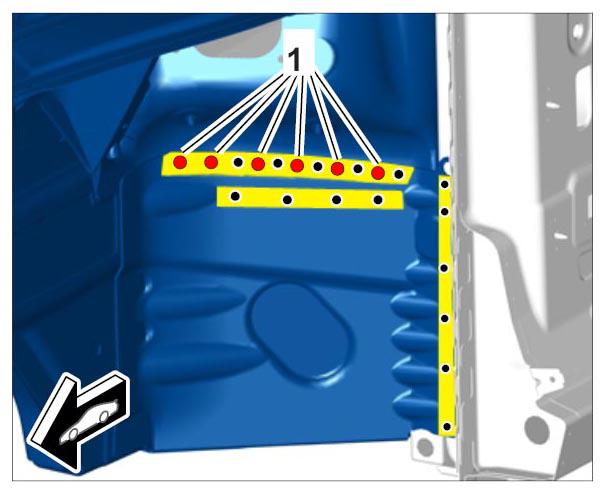

  Fig 2: Identifying Wheel Housing Area Drilling Holes
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through existing bore holes from inside the vehicle. → Diameter: 6.6 mm

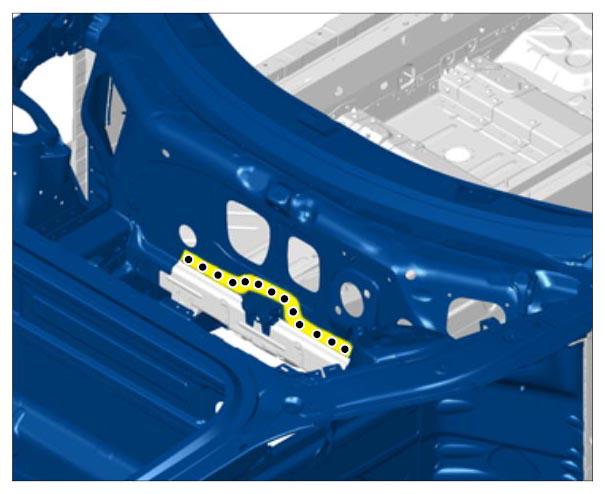

Fig 3: Identifying Bulkhead Area Drilling Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through existing bore holes from inside the vehicle. → Diameter: 6.6 mm

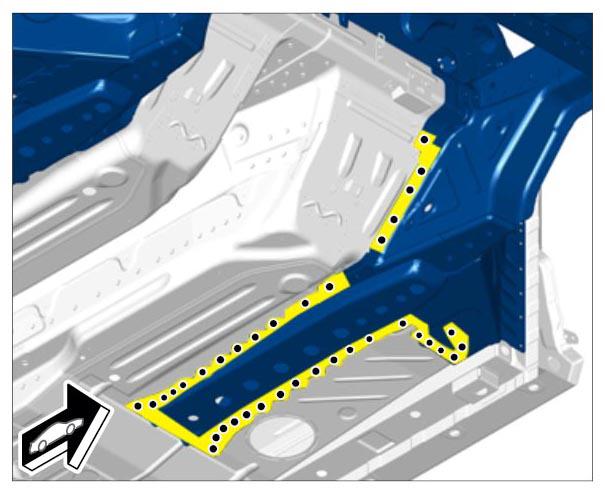

Fig 4: Identifying Side Member Area Drilling Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

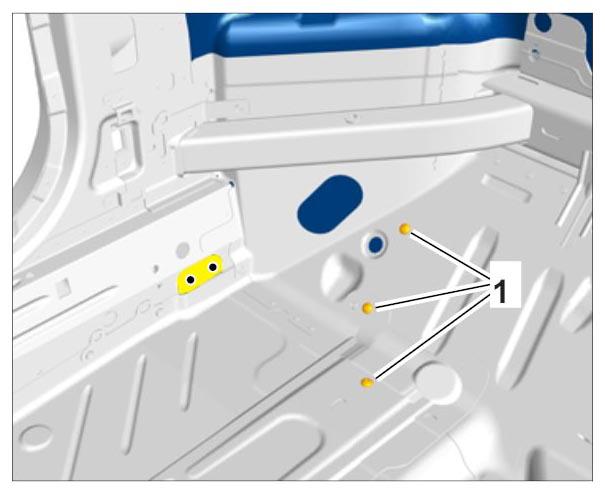

Fig 5: Identifying Footwell Area Drilling Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

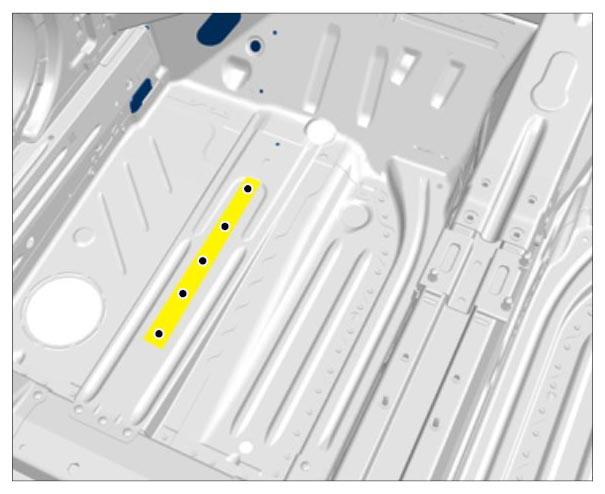

Fig 6: Drilling Holes In Footwell Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas on the body front section.

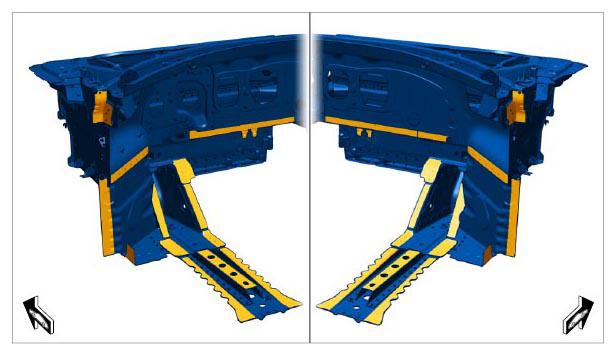

Fig 7: Identifying Connection Areas On Body Front Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
