Installing Cowl Panel Cover

Installation is performed in reverse order to removal.

Insert the centering pin -1-  into the corresponding centering cut-out -2-  to align the cowl panel cover at the sides.

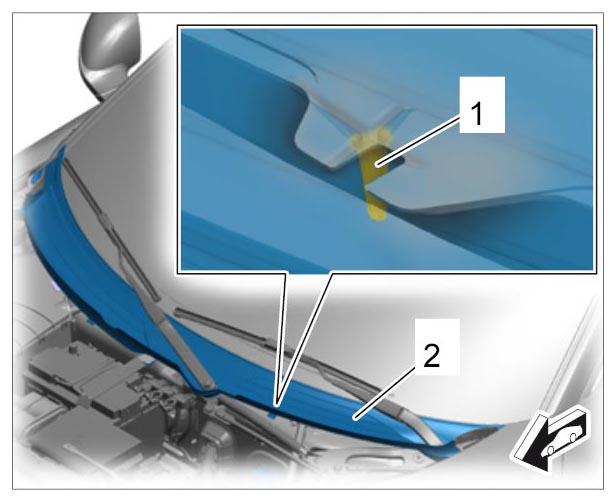

Fig 1: Identifying Centering Pin In Cowl Panel Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
