Preparing Connection Areas Of Body For Installing Front Wheel Housing

Prepare connection areas on the body for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

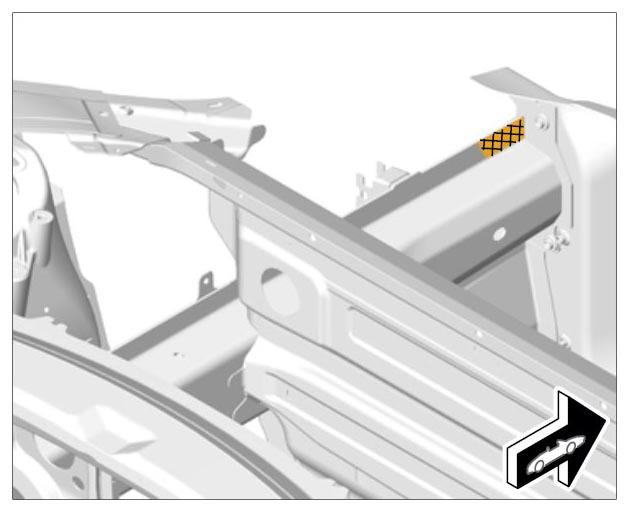

Fig 1: Identifying Front Wheel Housing Body Connection Areas (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

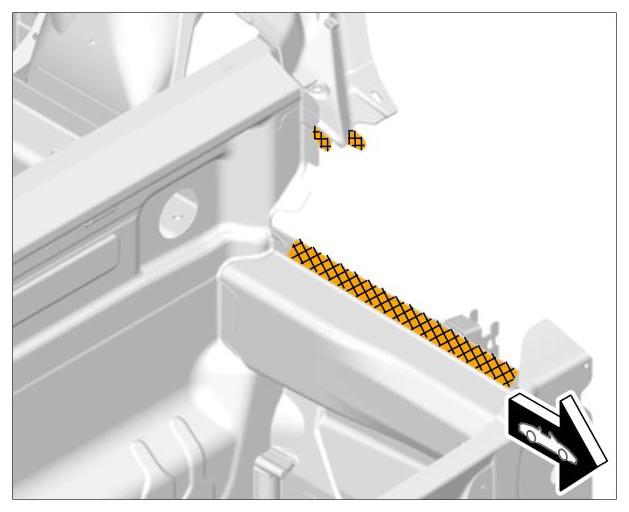

Fig 2: Identifying Front Wheel Housing Body Connection Areas (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

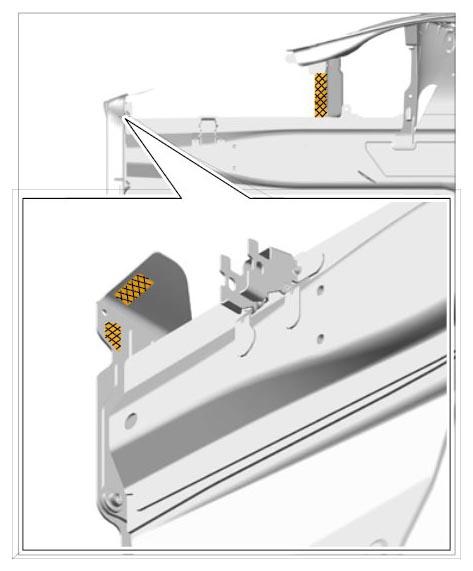

Fig 3: Identifying Front Wheel Housing Body Connection Areas (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
