Preparing Connection Areas Of Body For Installing Longitudinal Member For Wheel Housing

Straighten sealing surface and connection areas of the body.
De-burr connection areas and prepare for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Prepare marked areas for welding and bonding.

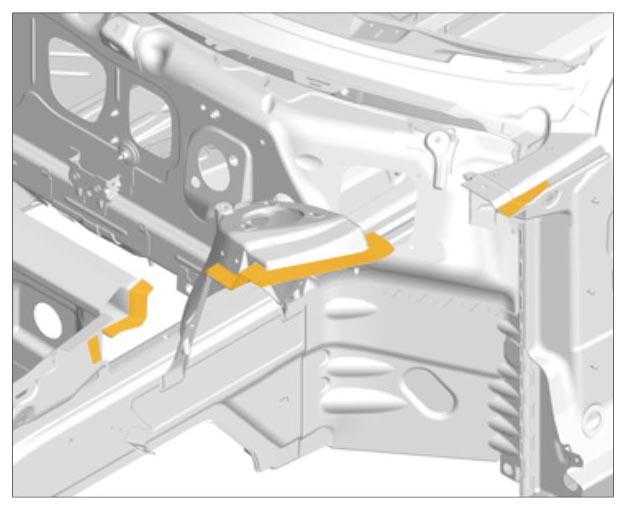

Fig 1: Identifying Longitudinal Member For Wheel Housing Connection Areas (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

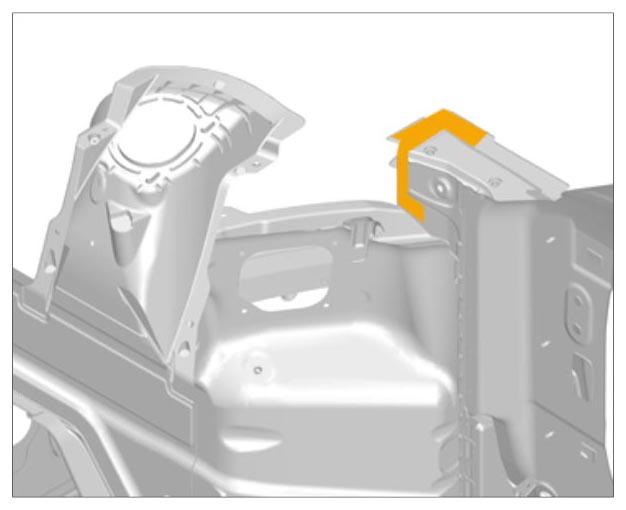

Fig 2: Identifying Longitudinal Member For Wheel Housing Connection Areas (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
