Removing And Installing Front Wheel Housing Liner (Rear Part)

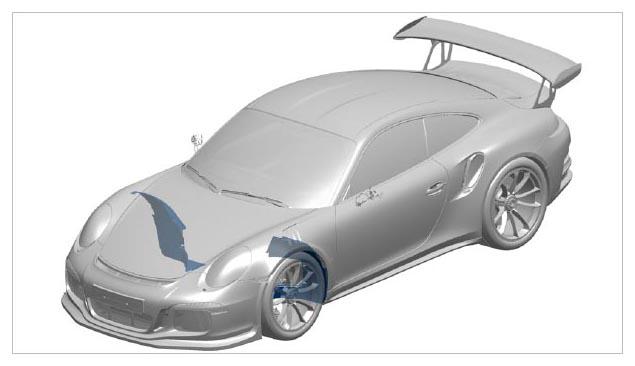

Fig 1: Identifying Front Wheel Housing Liner Position (Rear Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove front wheel housing liner (rear part).
   1. 1.1. Unscrew fastening screws -1-  .
   2. 1.2. Remove front wheel housing liner (rear part).

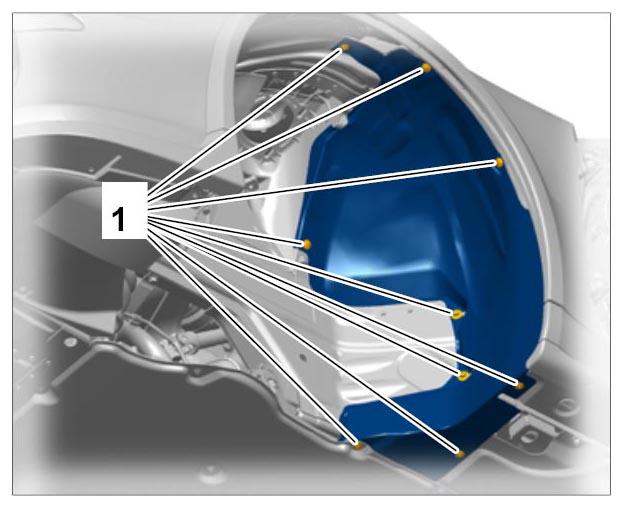

   Fig 2: Identifying Front Wheel Housing Liner Fastening Screws (Rear Part)
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
